Rover 400 Workshop Manual (1995-2000)12 · Engine management system - EDC
12 · Engine

Injection pump - without intercooler (page 2 of 4)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Engine management system - EDCInjection pump - without intercooler · page 2 of 4
Diagram

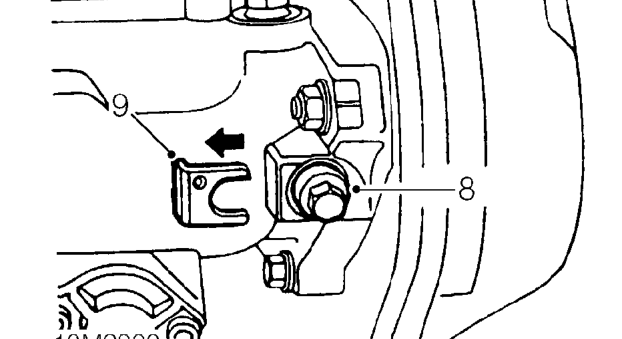

  1. Slacken FIP shaft clamp bolt.
  2. Remove spacer from clamp bolt.
  3. Tighten clamp bolt to 31 Nm.

CAUTION: DO NOT exceed specified torque. Damage to the shaft will render the FIP inoperable.

Tighten clamp bolt to 31 Nm.

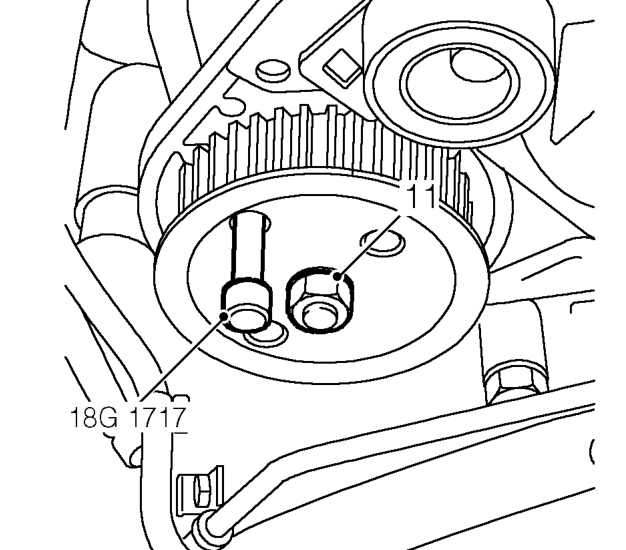

  1. Remove FIP drive gear retaining nut.
  2. Remove locking pin tool 18G 1717 from FIP drive gear.
Remove locking pin tool 18G 1717 from FIP drive gear.

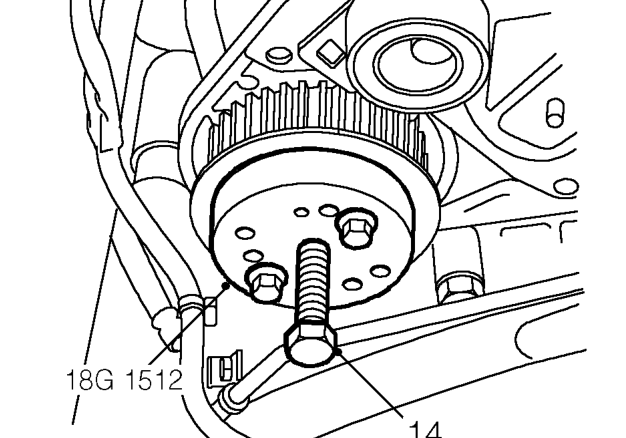

  1. Fit tool 18G 1512B to FIP drive gear.
  2. Rotate tool 18G 1512B centre bolt clockwise to release FIP drive gear from taper.
  3. Remove tool 18G 1512B from drive gear.
Remove tool 18G 1512B from drive gear.

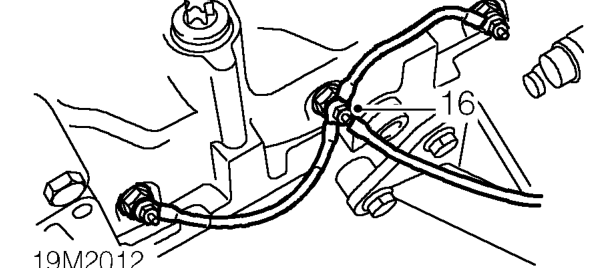

  1. Remove nut and disconnect feed lead from No 2 glow plug.
Remove nut and disconnect feed lead from No 2 glow plug.

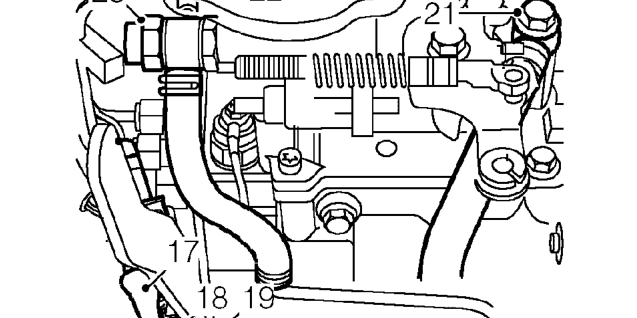

  1. Release injector needle lift sensor multiplug from FIP bracket.
  2. Disconnect FIP multiplug.
  3. Release engine harness from injection pump bracket.
