AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

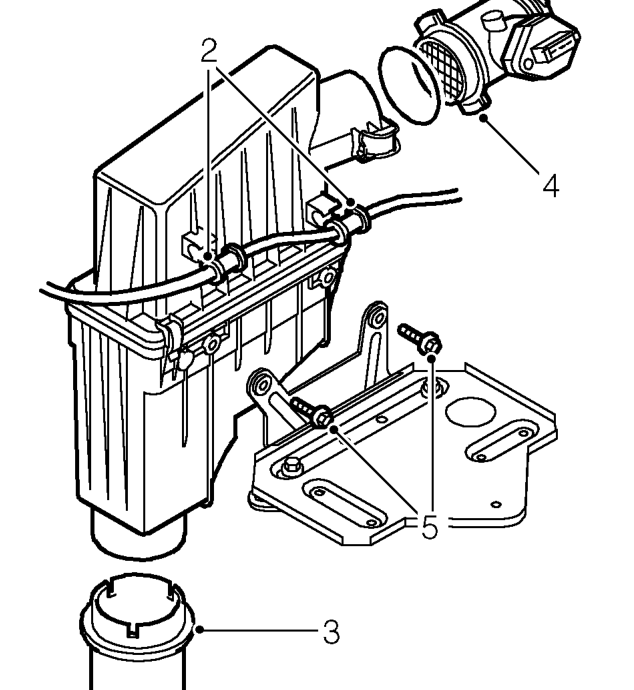

Air cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Release throttle cable from clips on air cleaner housing.
  2. Release air intake hose from bottom of air cleaner housing.
  3. Release 2 clips and disconnect air flow meter housing from air cleaner.
  4. Remove 2 bolts securing air cleaner to battery tray and remove air cleaner.

Refit

  1. Position air cleaner to battery tray and secure with bolts.

NOTE: Ensure bottom of air cleaner is located on peg.

  1. Connect air flow meter housing and secure with clips.
  2. Connect air intake hose to bottom of air cleaner.
  3. Secure throttle cable to clips on air cleaner.
  4. Fit battery. See ELECTRICAL, Repairs.
