Engine and gearbox - models without air conditioning (page 4 of 8)

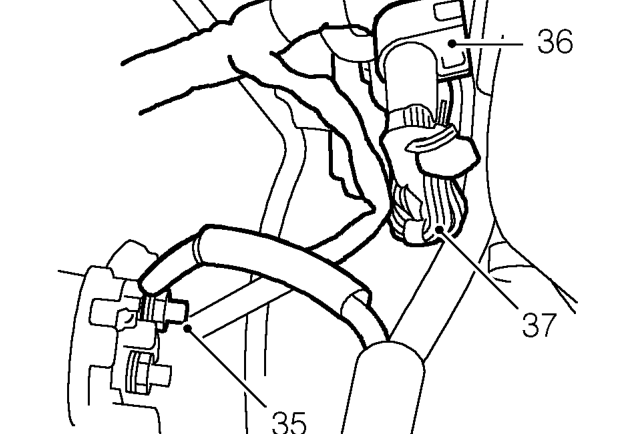

35. Remove nut securing battery lead to starter motor solenoid, release lead and position aside.
36. Release main harness support clip from body mounting bracket.
37. Release 2 main harness to engine harness multiplugs from mounting bracket and disconnect multiplugs.

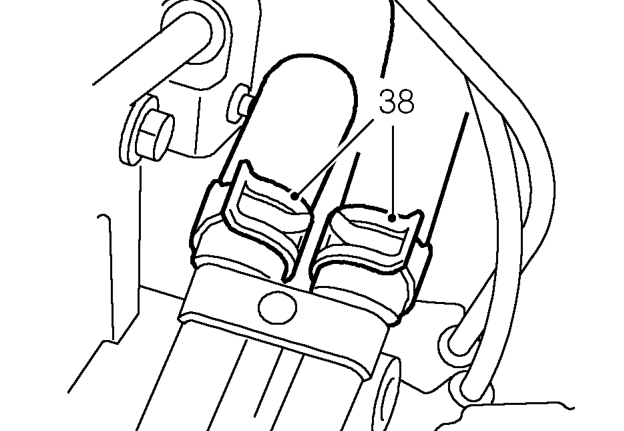

38. Release 2 clips and disconnect heater hoses from engine coolant rail.

39. Position container beneath PAS hose union at rear of engine.

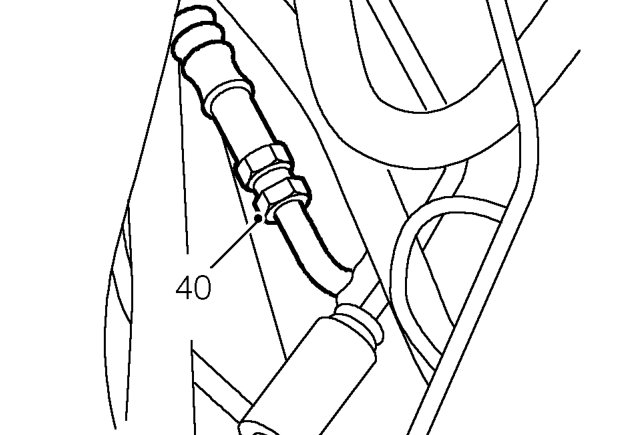

40. Loosen PAS hose union, disconnect union and allow PAS fluid to drain.

CAUTION: To prevent damage to PAS pipes, use 2 spanners when tightening or loosening unions. Plug the connections.

41. Release clip securing clutch hydraulic pipe to harness.

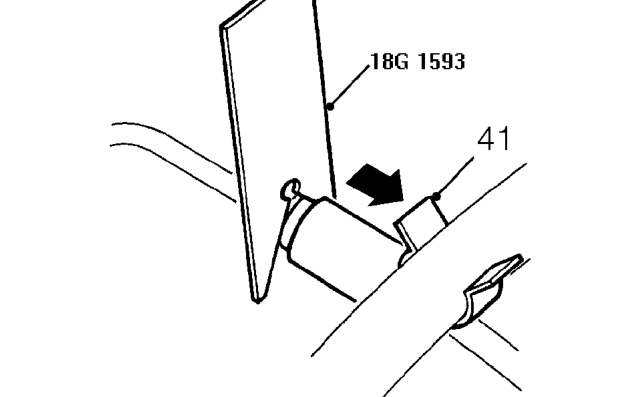

42. Using tool 18G 1593 disconnect quick release connector connecting 2 halves of clutch hydraulic pipe.

NOTE: The quick release connector has a valve in each end preventing loss of clutch fluid and removing the need for bleeding the clutch system.
