Engine and gearbox - models without air conditioning (page 3 of 8)

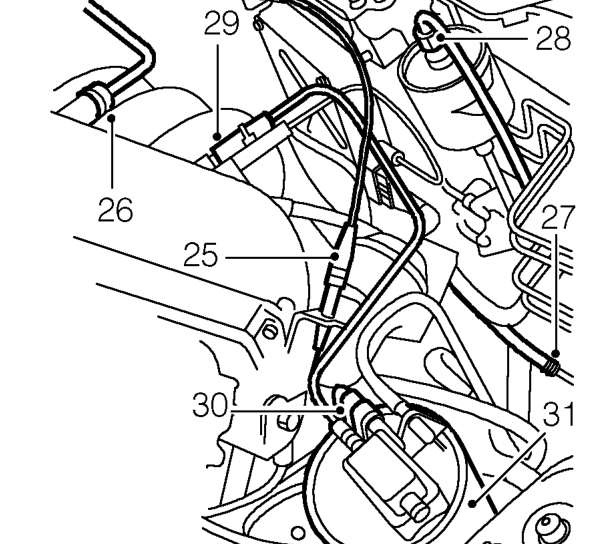

25. Release throttle cable adjustment nut from abutment bracket, release inner cable from throttle cam and position cable aside.
26. Release brake servo vacuum pipe from inlet manifold.
27. Release clip and disconnect fuel return hose from fuel pipe.
28. Loosen union and disconnect fuel pipe from fuel filter.

CAUTION: To prevent damage to fuel pipes and components, use 2 spanners when loosening or tightening unions. Plug the connections.

29. Release clip securing evaporative emission canister purge hose to inlet manifold and release hose.
30. Disconnect multiplug from evaporative emission canister purge valve.
31. Release evaporative emission canister from mounting bracket and position aside.

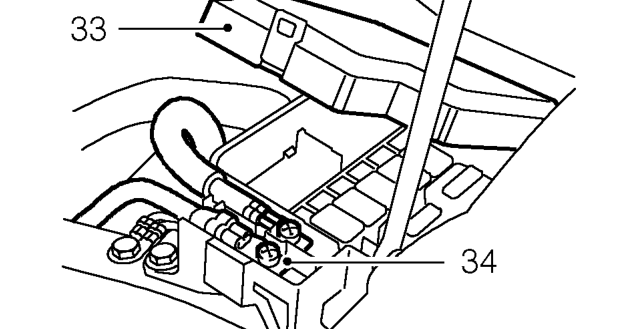

32. Remove engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

33. Release clip and remove engine compartment fusebox cover.
34. Remove screw securing lead to fusebox.
