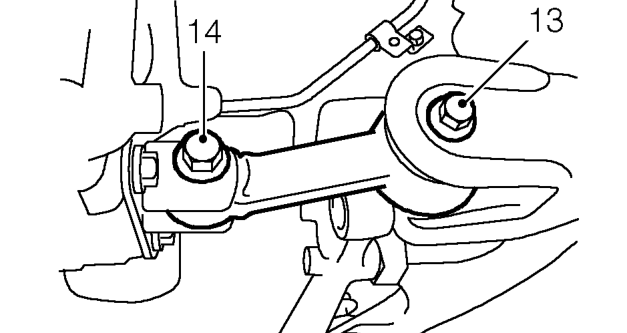

13. Loosen bolt securing engine lower tie bar to rear beam.
14. Remove bolt securing engine lower tie bar to sump, and release from bracket.
15. Release LH drive shaft from gearbox, as detailed in LH differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
16. Release RH drive shaft from gearbox, as detailed in RH differential oil seal. See MANUAL GEARBOX - ’PG1’, Repairs.
17. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

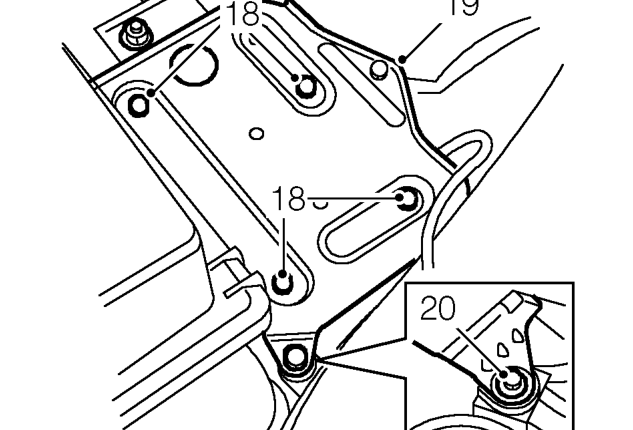

18. Remove 4 bolts and nut securing battery tray to mounting bracket and engine LH mounting.
19. Remove battery tray.
20. Remove bolt securing air intake hose to battery tray mounting bracket.

21. Loosen 2 bolts securing battery tray mounting bracket to body.
22. Release battery tray mounting bracket from fixings.

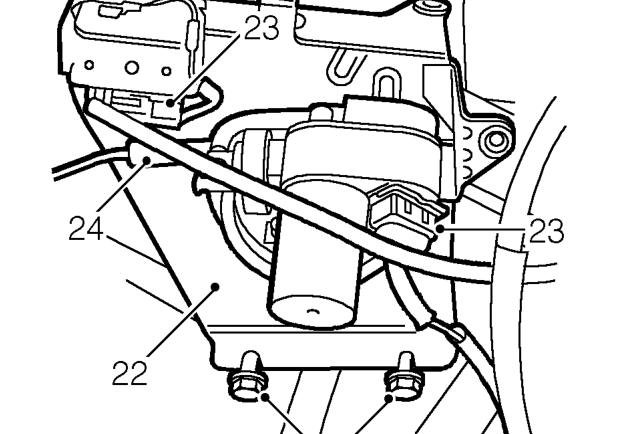

23. Disconnect multiplugs from dim dip resistor and cruise control vacuum control unit.
24. Release vacuum hose from cruise control vacuum control unit and remove battery tray mounting bracket assembly.
