Cylinder block: repairs › Installation
EngineInstallation

Installation

The seal surface on the block should be dry. Apply a light coat of oil to the crankshaft and to the lip of the seal.

Crankshaft oil seal assembly
  1. 18G1485
  2. 12M0755A
  3. Drive in crankshaft oil seal against right side cover.

Note:

  • Install seal with part number side facing out.
  • Drive the crankshaft oil seal in squarely.

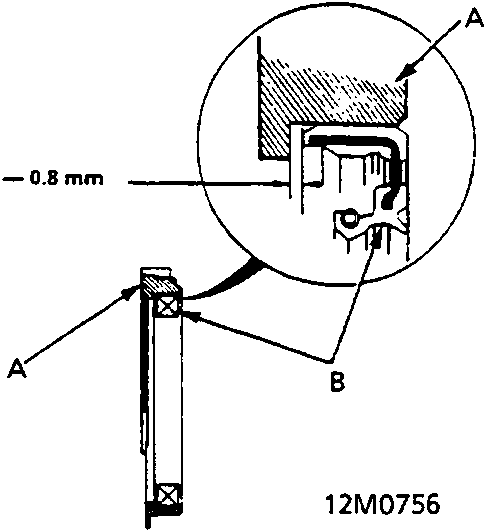

Cross-section detail showing clearance between right side cover and crankshaft oil seal
  1. A Right Side Cover
  2. B Crankshaft Oil Seal
  1. Confirm with a feeler gauge that the clearance is 0.5 – 0.8 mm and is equal all the way around.
