Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Rear Balancer

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs › Rear Balancer
EngineRear Balancer · page 1 of 2

Rear Balancer

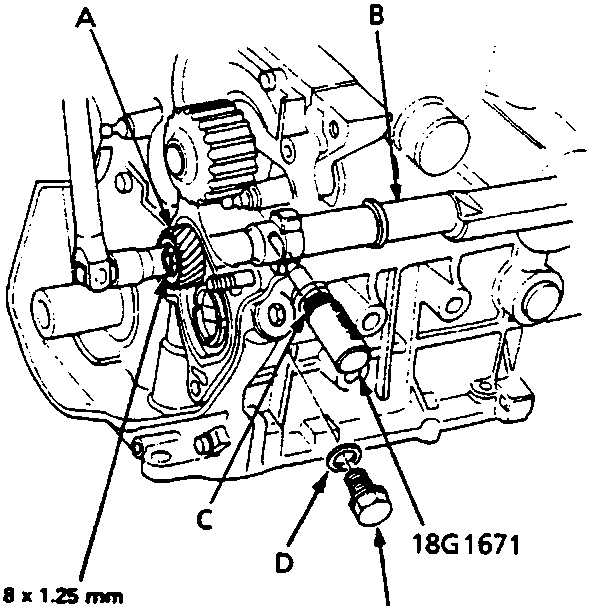

Diagram of rear balancer assembly showing driven gear, rear balancer shaft, maintenance hole, and washer with tool 18G1671. Torque values 25 Nm for 8 x 1.25 mm fasteners and 30 Nm for 12 x 1.5 mm fasteners are indicated. Figure ID 12M0767.

A Driven Gear

B Rear Balancer Shaft

C Maintenance Hole

D Washer

  1. Hold the rear balancer shaft with the special tool, then install the balancer driven gear and the timing balancer belt driven pulley.

Front Balancer

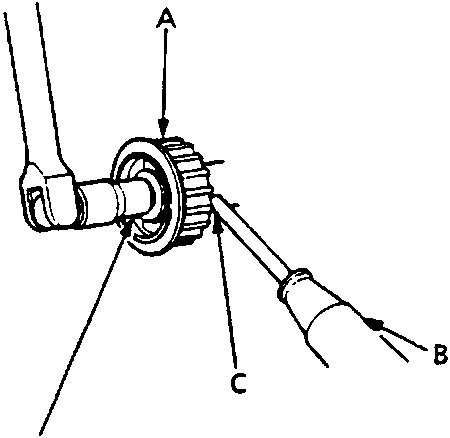

Diagram of front balancer assembly showing timing balance belt driven pulley being held by a screwdriver at the maintenance hole. Figure ID 12M0768.

A Timing Balance Belt Driven Pulley

B Screwdriver

C Maintenance Hole

  1. Hold the front balancer shaft with a screwdriver, then install the timing balancer belt driven pulley.
