Journal Diameter
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Cylinder block: repairs › Journal Diameter
EngineJournal Diameter · page 1 of 2

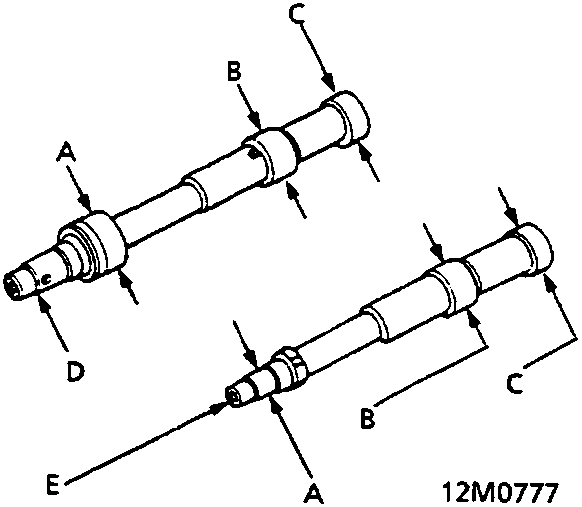

Measuring points
- A No. 1 Journal
- B No. 2 Journal
- C No. 3 Journal
- D Front Balancer Shaft
- E Rear Balancer Shaft

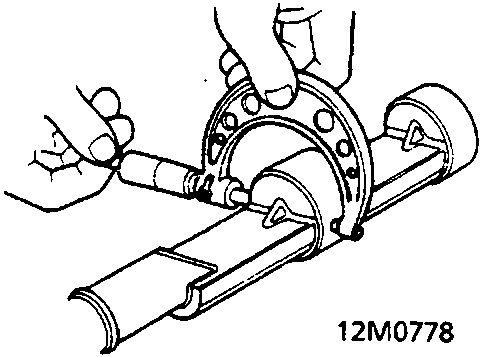

- Measure the diameters of the balancer shaft journals at the measuring points shown.
Journal Diameter
Standard (New)
No. 1 journal:
Front: 42.722 – 42.734 mm
Rear: 20.938 – 20.950 mm
No. 2 journal: 38.712 – 38.724 mm
No. 3 journal: 34.722 – 34.734 mm
Service Limit:
No. 1 journal:
Front: 42.71 mm
Rear: 20.92 mm
No. 2 journal: 38.70 mm
No. 3 journal: 34.71 mm
- Remove the crankshaft, the pistons and the other parts from the block, then clean the balancer shaft journal bearings of the block and the oil pump housing with a clean cloth.
- Check the surface of the bearings. If there is wear, damage or discoloration, replace the bearings or the oil pump housing.
