Right Side Cover

Note: Retainer thickness is fixed and must not be changed by grinding.

• Use liquid gasket.
• Check that the mating surfaces are clean and dry before applying liquid gasket.
• Apply liquid gasket evenly, being careful to cover all the mating surface.
• To prevent leakage of oil, apply liquid gasket to the inner threads of the bolt holes.
• Do not install the parts if 20 minutes or more have elapsed since applying the liquid gasket. Instead reapply liquid gasket after removing the old residue.
• After assembly, wait at least 30 minutes before filling the engine with oil.

Right Side Cover

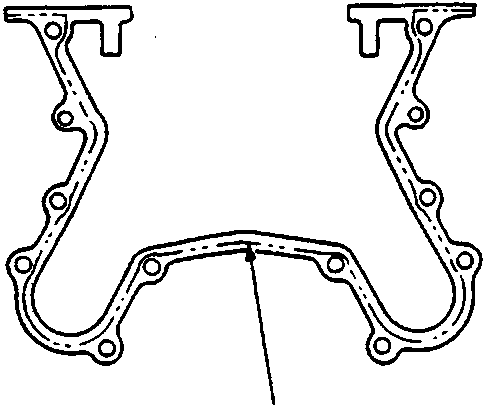

1. A Broken Line

1. A Dowel Pins
2. B Right Side Cover

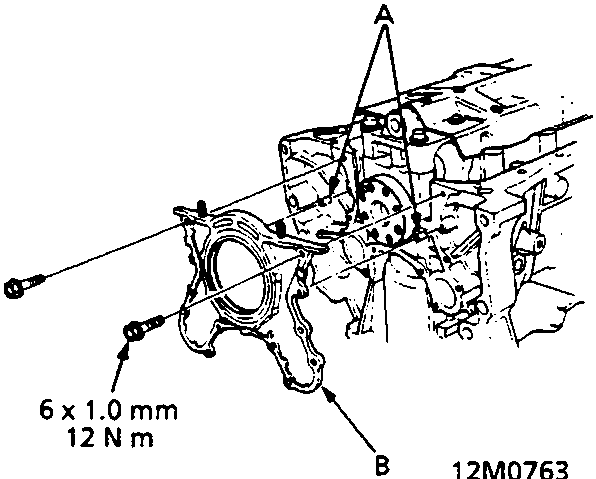

Apply liquid gasket to the block mating surface of the right side cover (along the broken line shown) and to the threads of the bolts, then install it on the cylinder block.

Oil Pump

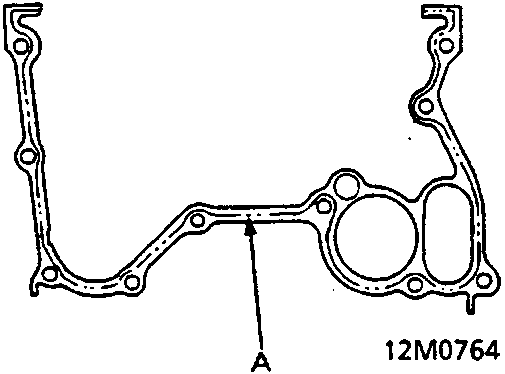

1. A Broken Line
