Cylinder block: repairs › Remove
EngineRemove · page 1 of 3

Remove

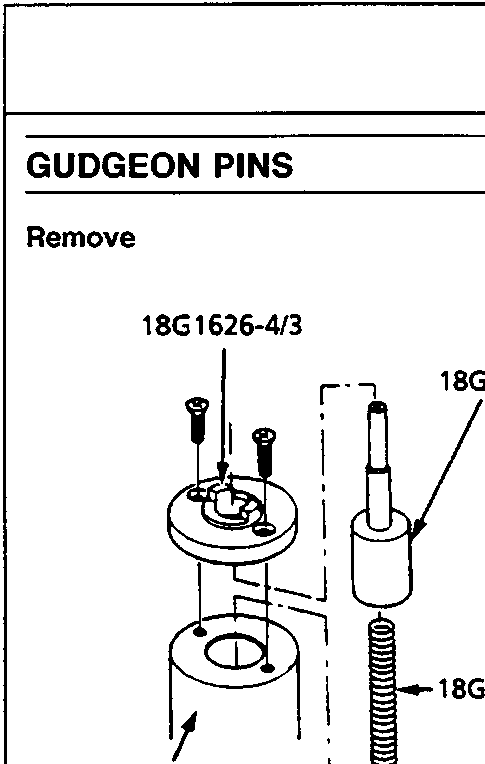

Diagram of Gudgeon Pin Tools assembly showing parts 18G1626-4/3, 18G1626-4/1, and 18G1626 with figure number 12M0740

the recessed portion of the piston aligns with the lips of the collar.

  1. Assemble the Gudgeon Pin Tools as shown.
Diagram of piston pin driver tool 18G1626-4/5 and 18G1626-4/4 showing length A, and piston on tool 18G1626-4/2 with figure number 12M0741
  1. Adjust the length A of the piston pin driver to 51.5 mm.
  2. Place the piston on tool No. 18G1626, with the embossed mark facing up and press the pin out with a hydraulic press, ensuring that
