Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Manual Transmission:

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs › Manual Transmission:
EngineManual Transmission:

Renew

Manual Transmission:

Diagram showing the cylinder block and ring gear assembly with callout A

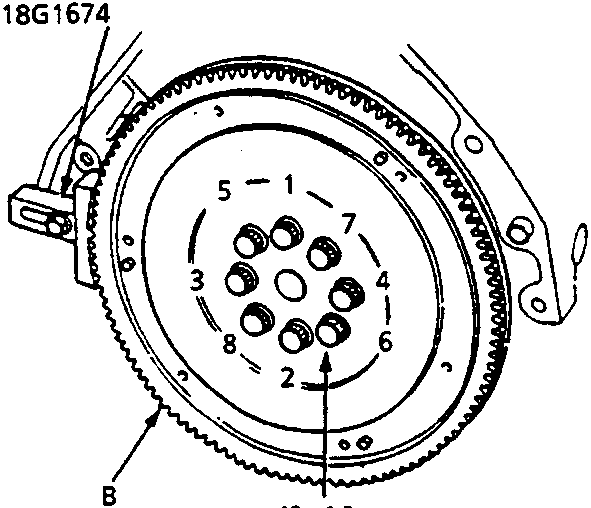

Flywheel assembly showing tightening sequence, ring gear (B), and torque specification of 105 Nm for 12 x 1.0 mm bolts
  1. A Cylinder Block
  2. B Ring Gear

Note: Check drive plate for cracks before installation.

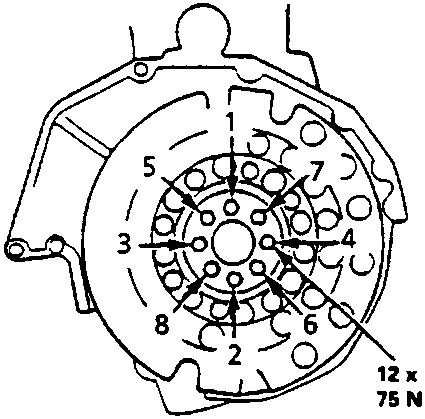

Drive plate assembly showing tightening sequence and torque specification of 75 Nm for 12 x 1.0 mm bolts

Remove the eight flywheel bolts, then separate the flywheel from the crankshaft flange. After installation, tighten the bolts in the sequence shown.

Note: Check ring gear teeth for wear or damage before installation.

Automatic Transmission:

Remove the eight drive plate bolts, then separate the drive plate from the crankshaft flange. After installation, tighten the bolts in the sequence shown.
