Crankshaft, balancer shafts and pistons

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs › Crankshaft, balancer shafts and pistons
EngineCrankshaft, balancer shafts and pistons · page 1 of 3

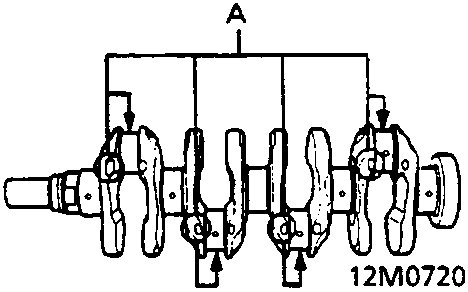

Diagram of crankshaft showing connecting rod journal code locations marked with letter A
A Connecting Rod Journal Code Locations (Letters or Bars)

CRANKSHAFT, BALANCER SHAFTS AND PISTONS

Remove

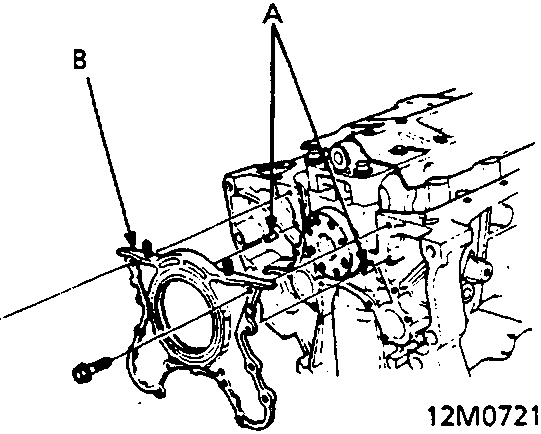

Diagram showing the right side cover and dowel pin on the cylinder block
A Dowel Pin B Right Side Cover
  1. Remove the right side cover.

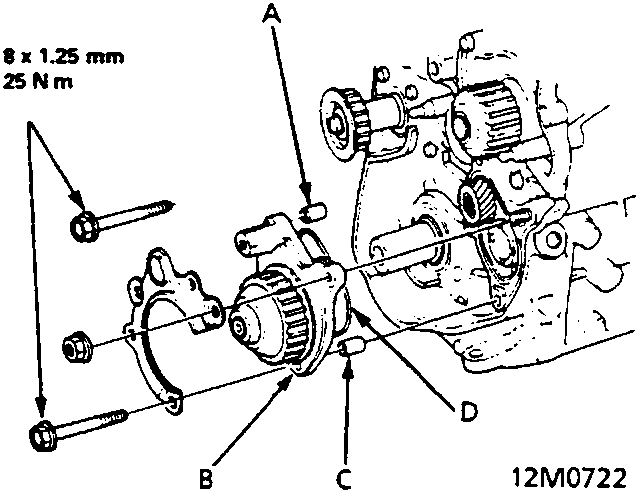

Diagram showing balancer gear case removal with bolts, dowel pins, and O-ring. Torque specification 8 x 1.25 mm 25 N m is printed in top left corner
A Dowel Pin B Balancer Gear Case C Dowel Pin D O – ring
  1. Remove the balancer gear case.
