Cylinder block: repairs
EngineCrankshaft, balancer shafts and pistons · page 2 of 3

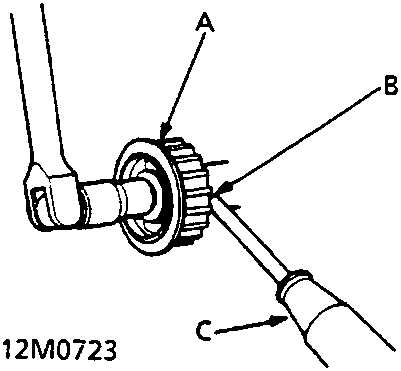

Diagram showing a balancer driven pulley (A) being removed with a screwdriver (C) through a maintenance hole (B).

A Balancer Driven Pulley

B Maintenance Hole

C Screwdriver

  1. Remove the front balancer driven pulley as shown.

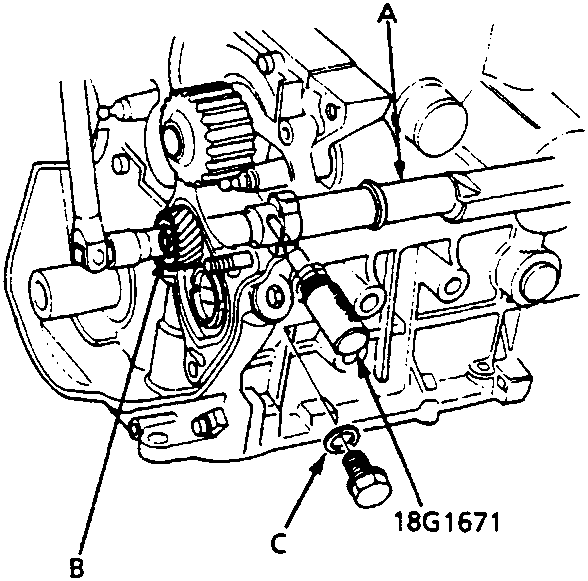

Diagram showing the rear balancer shaft (A), balancer driven gear (B), and washer (C), with special tool 18G1671 inserted.

A Rear Balancer Shaft

B Balancer Driven Gear

C Washer

  1. Align the bolt hole and the balancer shaft hole, then insert special tool 18G1671 to hold the rear balancer shaft.
  2. Remove the bolt and the balancer driven gear.

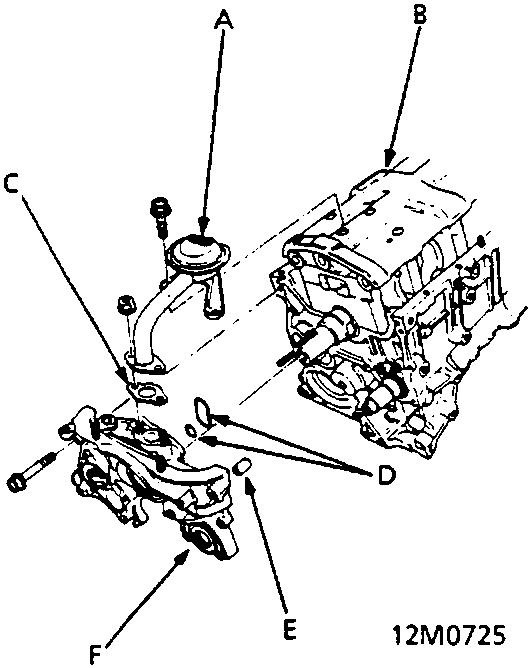

Exploded diagram of an oil pick-up strainer (A), baffle plate (B), gasket (C), O-rings (D), dowel pin (E), and oil pump (F) relative to the engine block.

A Oil Pick – up Strainer

B Baffle Plate

C Gasket

D O – rings

E Dowel Pin

F Oil Pump

  1. Remove the oil pick – up strainer and the oil pump.
  2. Remove the baffle plate.

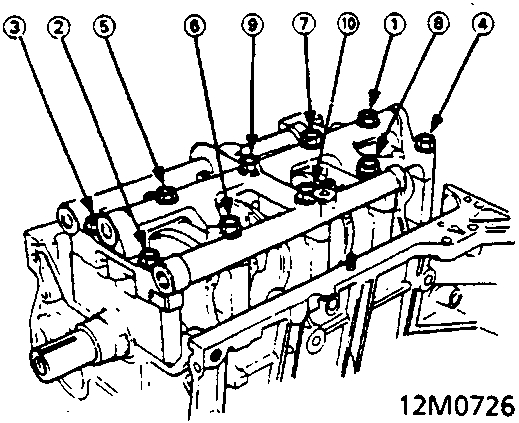

Diagram illustrating the numbered loosening sequence for main bearing cap bolts on a cylinder block.

Main bearing cap bolt loosening sequence

  1. Loosen the main bearing cap bolts in the sequence shown and remove the bolts and the bearing cap bridge, then remove the bearing caps.

CAUTION: To prevent warpage, unscrew the
