Cylinder block: repairs
EngineRemove · page 3 of 3

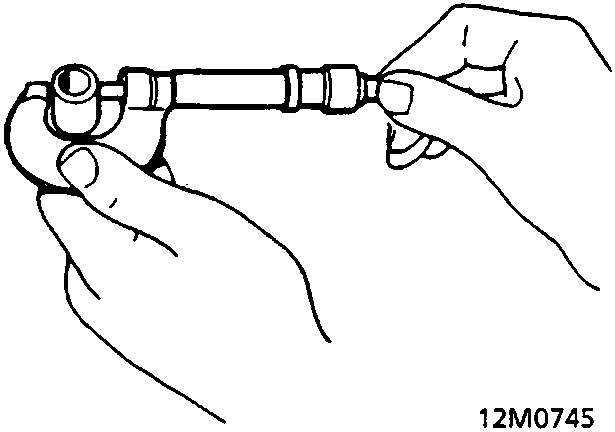

A hand holding a gudgeon pin while measuring its diameter with a micrometer (12M0745).
  1. Measure the diameter of the gudgeon pin. Gudgeon Pin Diameter:
    Standard (New): 21.994 ÷ 22.000 mm
    Oversize: 21.997 ÷ 22.003 mm

    Note: All replacement gudgeon pins are oversize.

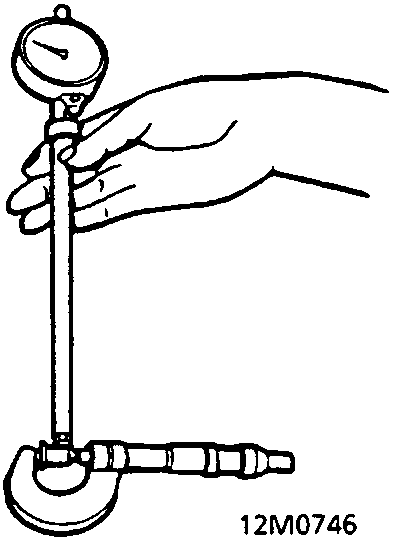

A dial indicator being zeroed against a gudgeon pin resting on a surface plate (12M0746).
  1. Zero the dial indicator to the gudgeon pin diameter.

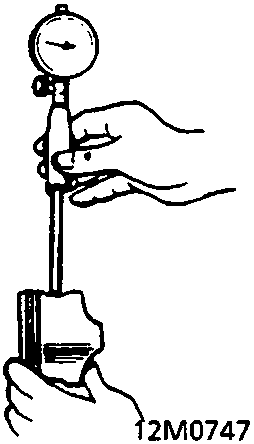

A dial indicator measuring the clearance between a gudgeon pin and a piston (12M0747).
  1. Measure the gudgeon pin – to – piston clearance.

    Note: Check the piston for distortion or cracks.

    If the gudgeon pin clearance is greater than, 0.024 mm remeasure using an oversize gudgeon pin. Gudgeon Pin – to – Piston Clearance:
    Standard (New): 0.012 ÷ 0.024 mm

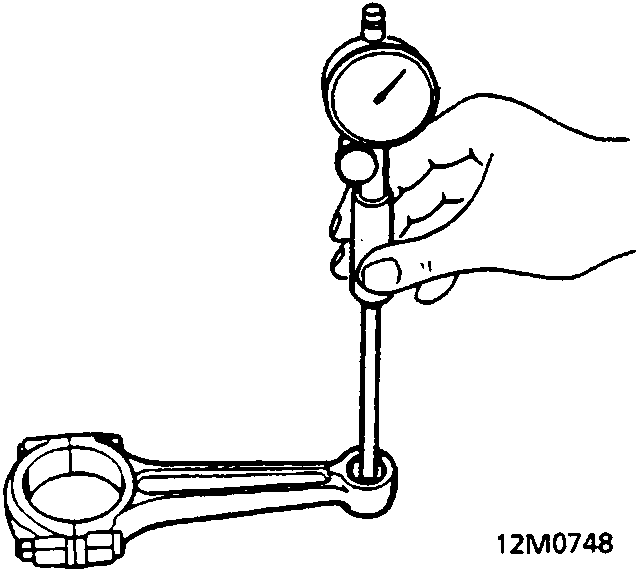

A dial indicator measuring the interference between a gudgeon pin and the small end of a connecting rod (12M0748).
  1. Check the difference between gudgeon pin diameter and connecting rod small end diameter. Gudgeon Pin – to – Connecting Rod Interference:
    Standard (New): 0.013 ÷ 0.032 mm
