Cylinder block: repairs
EngineJournal Diameter · page 2 of 2

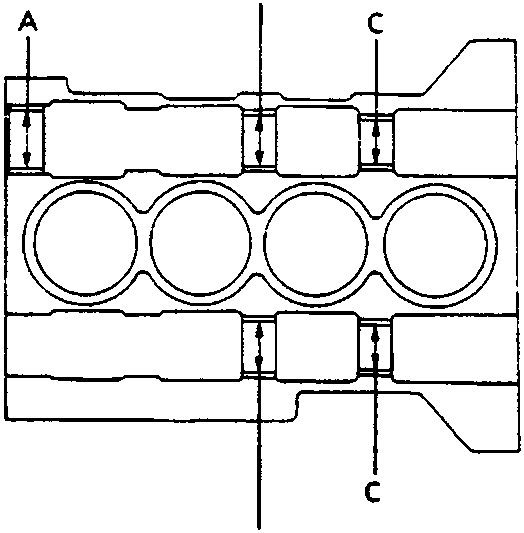

Diagram showing the cylinder block with callout lines labeled A, B, C, D, and E indicating bearing positions and front/rear orientation.
10. Measure the inner diameters of the balancer shaft journal bearings. BEARING INNER DIAMETER Standard (New): No. 1 journals: Front: 42.800 – 42.820 mm Rear: 21.000 – 21.013 mm No. 2 journals: 38.800 – 38.820 mm No. 3 journals: 34.800 – 34.820 mm Service Limit: No. 1 journals: Front: 42.83 mm Rear: 21.02 mm No. 2 journals: 38.83 mm No. 3 journals: 34.83 mm 11. Calculate the shaft – to – bearings oil clearances. Bearing inner diameter – journal outer diameter = oil clearance

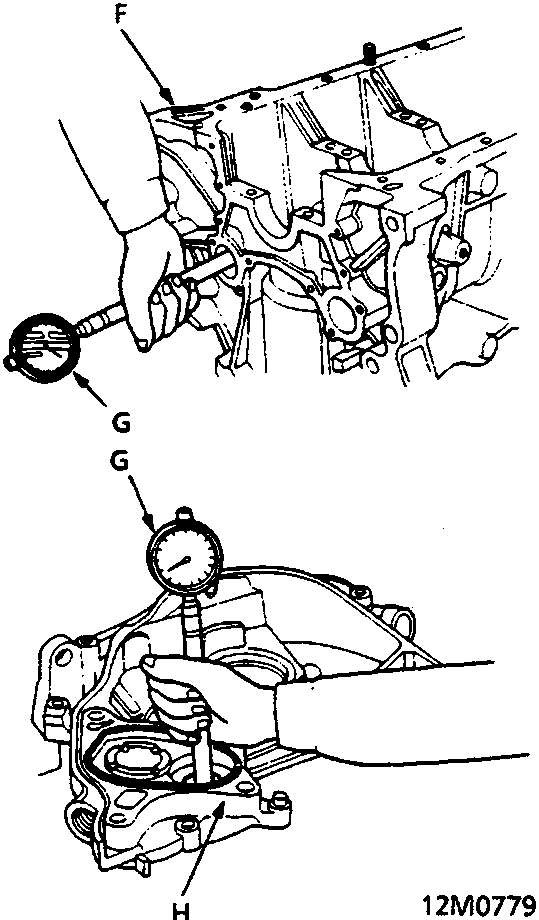

Two diagrams showing a dial gauge measuring the balancer shaft oil clearance in the block and the oil pump housing. Callouts are labeled F, G, and H.
BEARING – TO – SHAFT OIL CLEARANCE Standard (New) No. 1 journal front and No. 3 journals: 0.066 – 0.098 mm No. 2 journals: 0.076 – 0.108 mm No. 1 journal rear: 0.050 – 0.075 mm Service Limit: No. 1 journal front and No. 3 journals: 0.12 mm No. 2 journals: 0.13 mm No. 1 journal rear: 0.09 mm
  1. A No. 1 Bearing (Block)
  2. B No. 2 Bearing (Block)
  3. C No. 3 Bearing (Block)
  4. D Front
  5. E Rear
  6. F Block
  7. G Dial Gauge
  8. H No. 1 Rear Bearing (Oil Pump Housing)
