Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition03 · Engine
03 · Engine

Rear Balancer (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Cylinder block: repairs
EngineRear Balancer · page 2 of 2

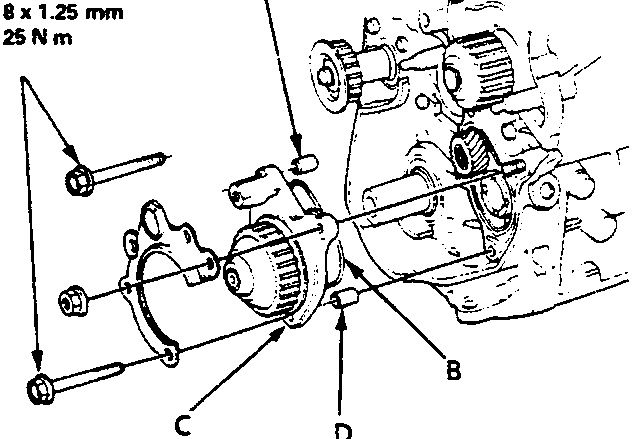

Diagram of balancer gear case installation showing dowel pins, O-ring, and pointers with torque specification 1x1.25 mm 25 N m
A Dowel Pin B O – ring C Balancer Gear Case D Dowel Pin E Pointer F Groove 13. Install the balancer gear case to the oil pump. Note: ● Install a new O – ring and apply engine oil to it. ● Align the groove on the pulley edge to the pointer on the gear case while holding the rear balancer with the special tool, then install the gear case.

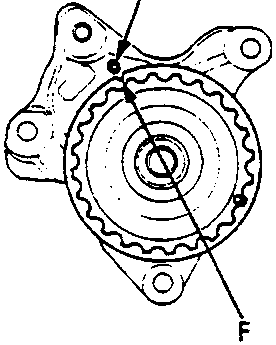

Diagram of balancer gear case alignment showing pointer E and groove F

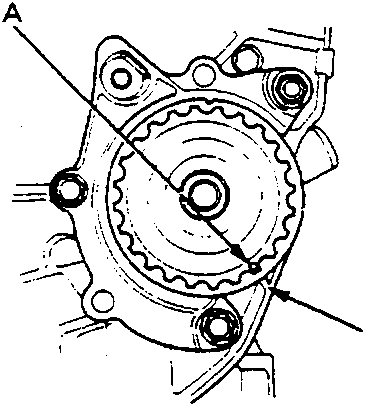

Diagram of oil pump and pulley alignment showing pointer A on pulley and pointer B on oil pump
A Pointer on the Pulley B Pointer on the Oil Pump 14. Check alignment of pointers after installing the gear case.

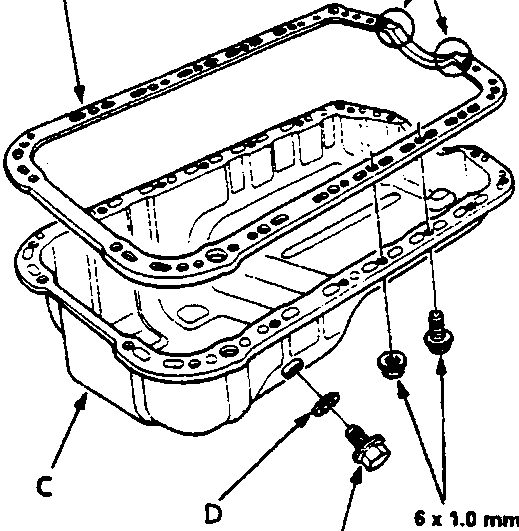

Exploded view of oil sump assembly showing gaskets, sump, washers, drain plug, and torque specification 6 x 1.0 mm 12 N m
A Oil Sump Gasket B Liquid Gasket C Oil Sump D Washer E Drain Plug
