Clutch Inspection (page 2 of 4)

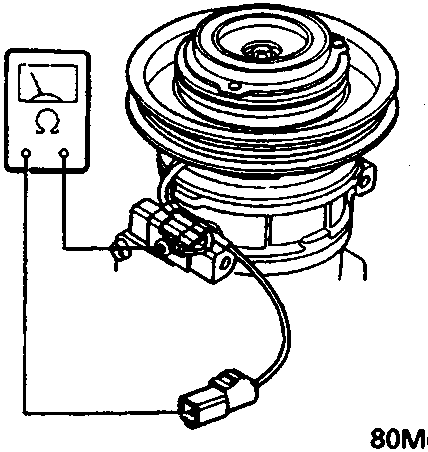

● Check resistance of the field coil;

Field coil resistance: 3.6 ± 0.2 ohm at 20°C (68°F)

If the resistance is not within specifications, replace the field coil.

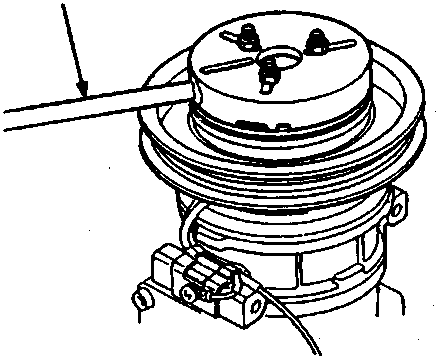

A Centre bolt

B A/C clutch holder

1. Remove the centre bolt while holding the pressure plate.

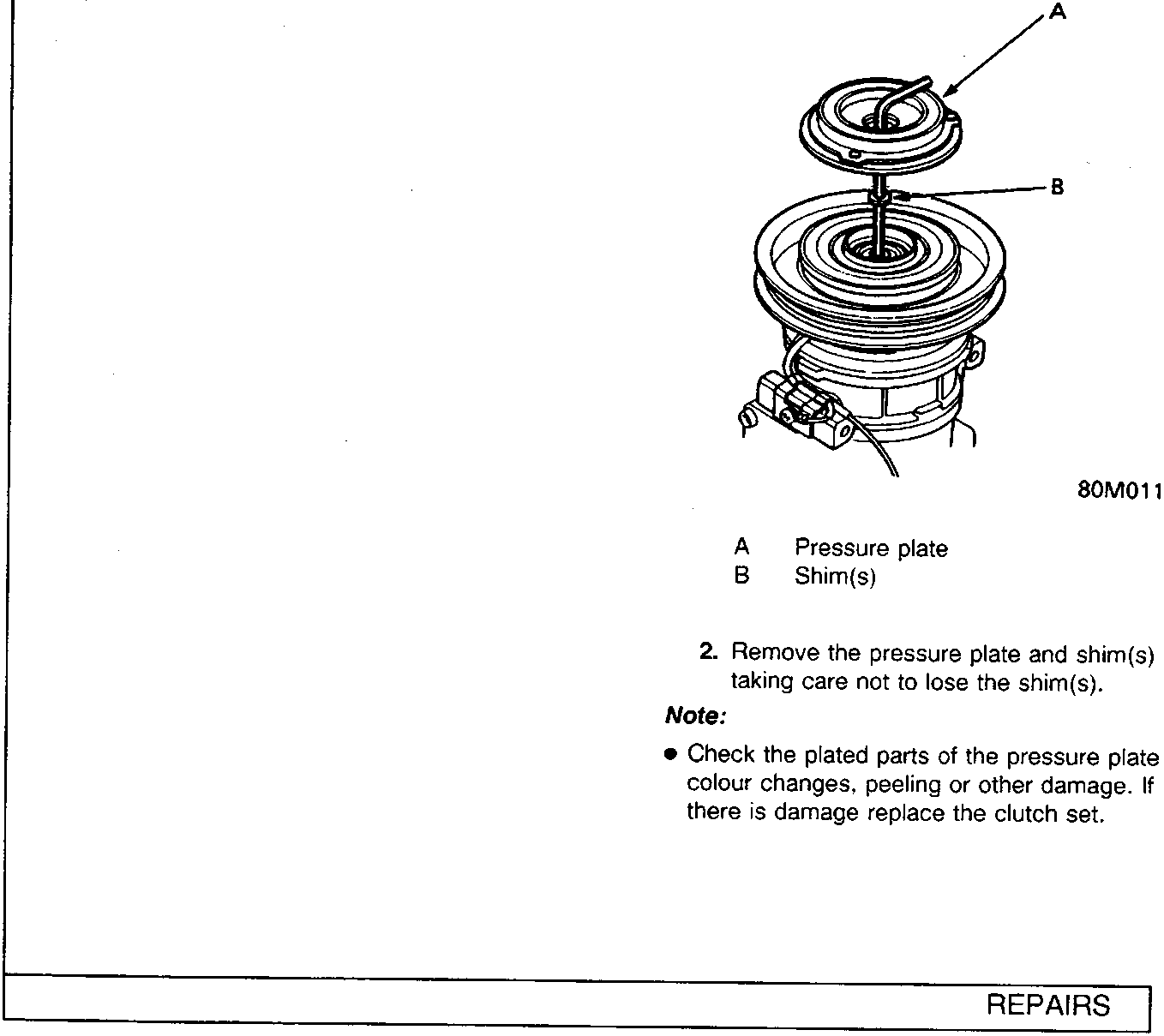

A Pressure plate

B Shim(s)

2. Remove the pressure plate and shim(s) taking care not to lose the shim(s).

Note:

• Check the plated parts of the pressure plate for colour changes, peeling or other damage. If there is damage replace the clutch set.
