Heating and ventilationClutch Inspection · page 3 of 4
Diagram showing compressor components labeled A (Snap ring B), B (Pulley), and C (Field coil) with a callout view of the snap ring.

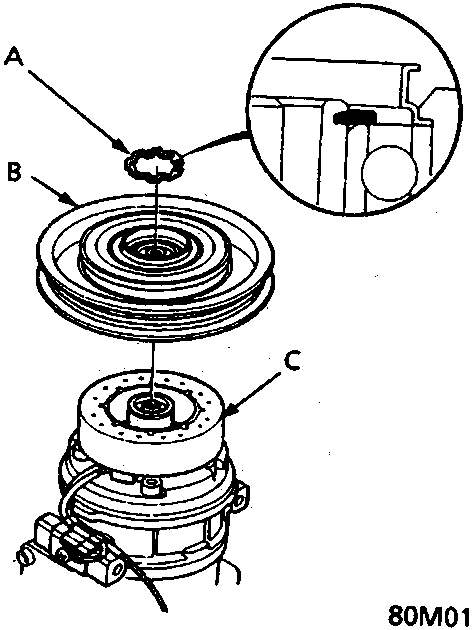

A Snap ring B B Pulley C Field coil 3. Use snap ring pliers to remove the snap ring B, then remove the pulley. Note:
  • Be careful not to damage the pulley and compressor during removal/installation.
  • Once the snap ring B is removed, replace it with a new one.
Diagram showing compressor assembly with callout view of snap ring A being removed from field coil B.

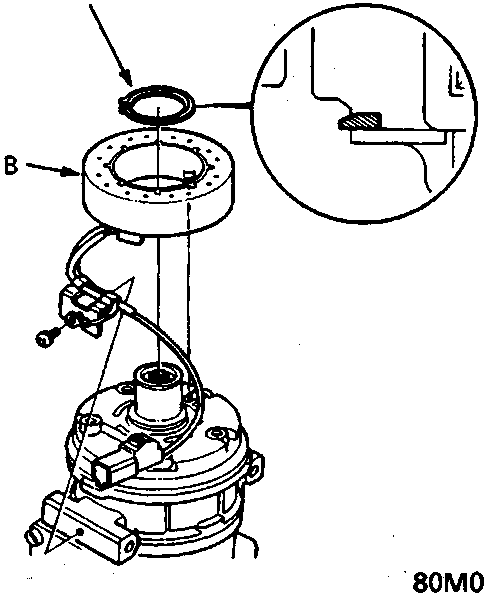

A Snap ring A B Field coil 4. Remove the snap ring A and the field coil. Note:
  • Be careful not to damage the field coil and compressor during removal/installation.
  • Once the snap ring A is removed, replace it with a new one.
5. Install in the reverse order of removal, and:
  • install the field coil with the wire side facing down (see above).
  • clean the pulley and compressor sliding surfaces with non - petroleum solvent.
  • check the pulley bearings for excessive play.
  • make sure the snap rings are in the groove properly.
  • apply locking agent to the thread of the centre bolt and tighten securely.
  • make sure that the pulley turns smoothly after reassembly.
