Description (page 2 of 4)
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Repairs
Heating and ventilationDescription · page 2 of 4

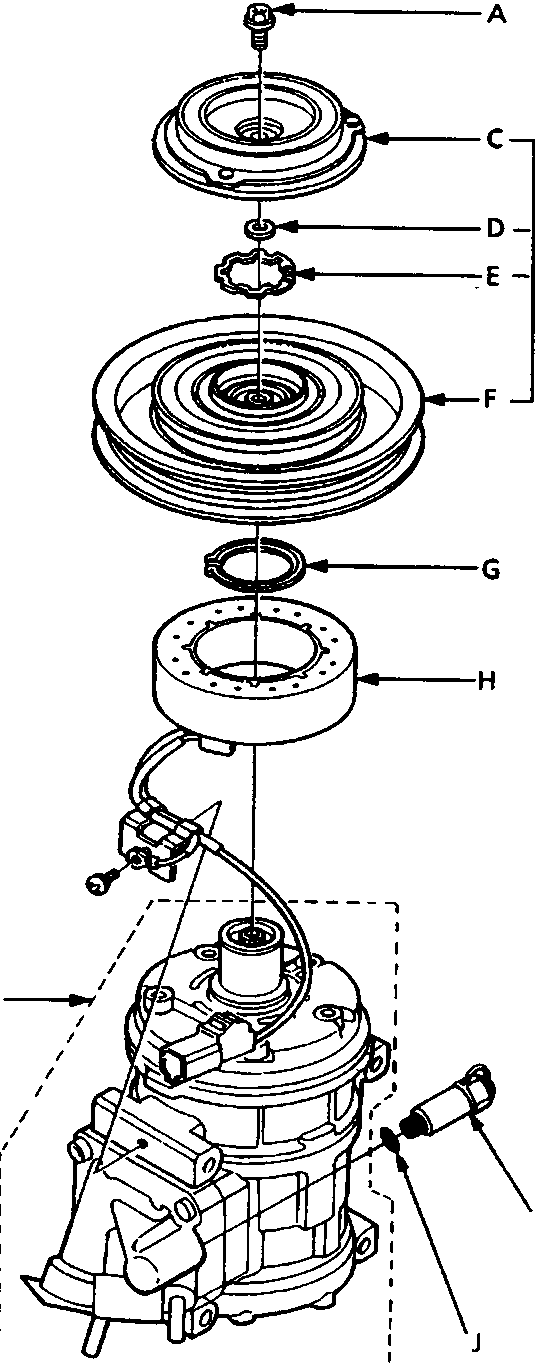

Description (page 2 of 4) – diagram from the Heating and ventilation chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.
80M0100
| A | Centre bolt | G | Snap ring A |
| B | Clutch set | H | Field coil |
| C | Pressure plate | I | Relief valve |
| D | Shim(s) | J | 'O' ring |
| E | Snap ring B | K | Compressor (complete) |
| F | Pulley |
