Heating and ventilationDescription · page 4 of 4
  1. Loosen the upper mounting bolt, lower mounting nut and the adjusting bolt, then remove the A/C compressor belt. remove the upper mounting bolt, lower mounting nut and the lower mounting bolt, then remove the alternator.

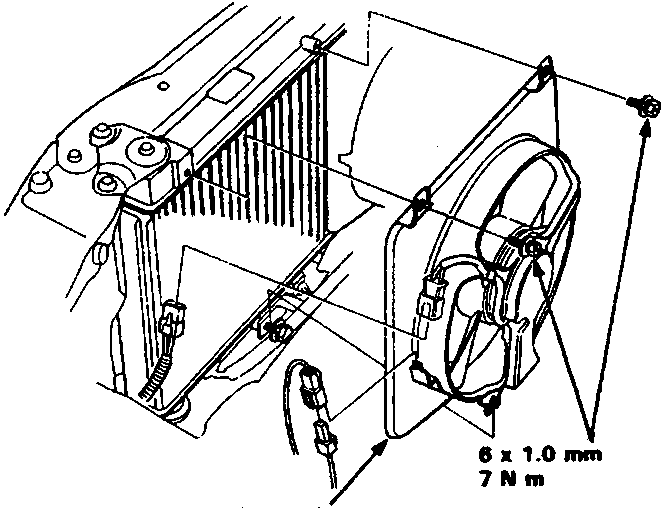

Diagram of condenser fan shroud showing mounting points with specification 6 x 1.0 mm 7 N m

A Condenser fan shroud

  1. Disconnect the condenser fan connector. Remove the compressor connector from the condenser fan shroud, then disconnect the compressor connector. Loosen the lower mounting bolt and remove the two upper mounting bolts, then remove the condenser fan shroud.

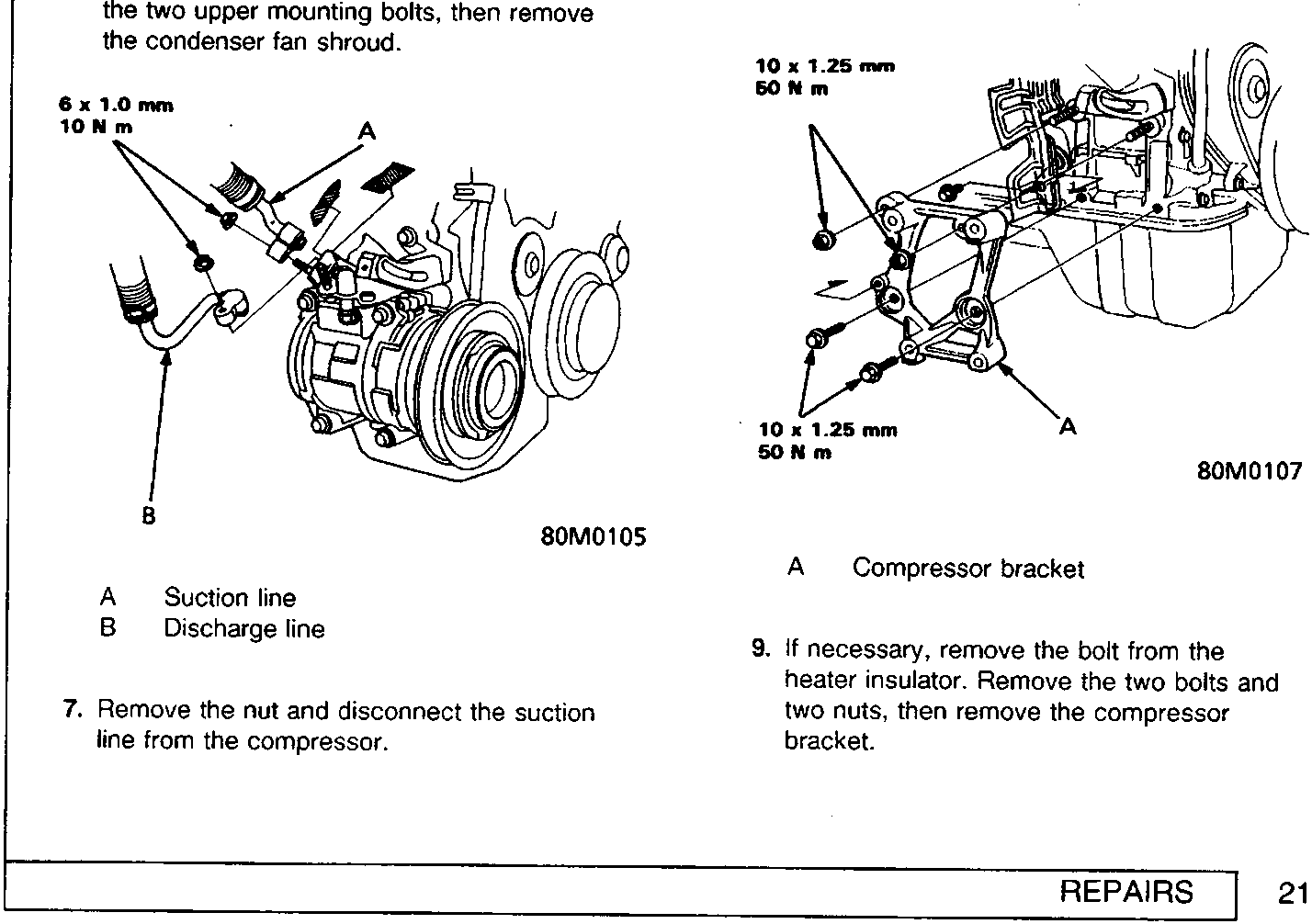

Diagram of compressor suction and discharge lines showing specifications 6 x 1.0 mm 10 N m for line A and 10 x 1.25 mm 50 N m for bracket

A Suction line

B Discharge line

  1. Remove the nut and disconnect the suction line from the compressor.

Remove the nut and disconnect the discharge line from the compressor.

Note: Plug or cap the lines immediately after disconnecting to avoid moisture and dust contamination into the system.

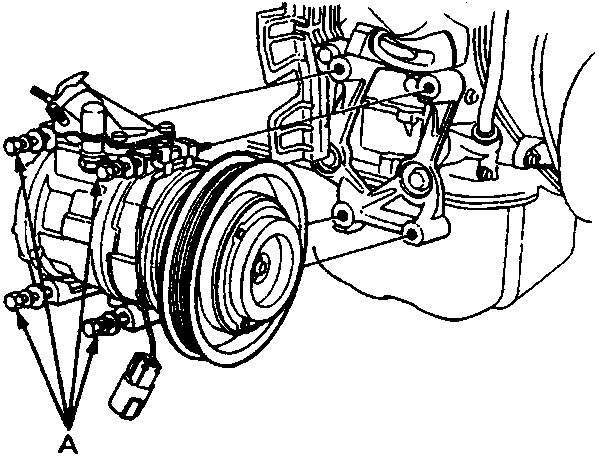

Diagram of compressor mounting bolts showing specification 8 x 1.25 mm 22 N m

A Mounting bolts

  1. Remove the four mounting bolts and the compressor.

CAUTION: Do not damage the radiator fins when removing the compressor.

Diagram of compressor bracket showing specifications 10 x 1.25 mm 50 N m

A Compressor bracket

  1. If necessary, remove the bolt from the heater insulator. Remove the two bolts and two nuts, then remove the compressor bracket.
