Heating and ventilationDescription · page 3 of 4
  1. If the compressor is marginally operable, run the engine at idle speed and let the air conditioning work a few minutes. Shut off the engine and disconnect the battery negative terminal.
  2. Discharge the refrigerant.

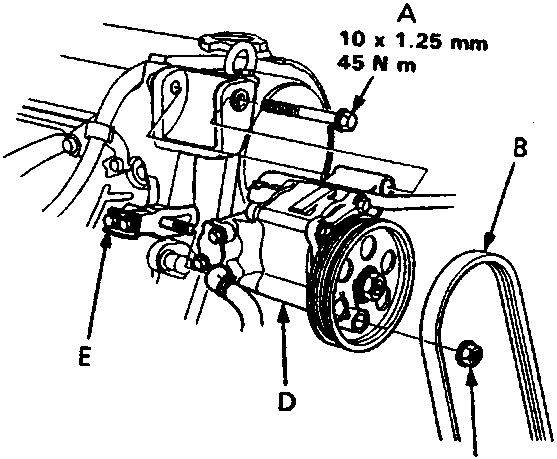

Diagram of power steering pump assembly showing mounting bolts, adjusting bolt, and belt with callouts A, B, C, D, E and torque specifications 10 x 1.25 mm 45 N m and 8 x 1.25 mm 22 N m

A Upper mounting bolt
B Power steering pump belt
C Lower mounting nut
D Power steering pump
E Adjusting bolt

  1. Loosen the upper mounting bolt, lower mounting nut and the adjusting bolt, then remove the power steering pump belt. Remove the upper mounting bolt and the lower mounting nut, then remove the power steering pump.

Note: Do not disconnect the inlet and outlet hoses from the power steering pump.

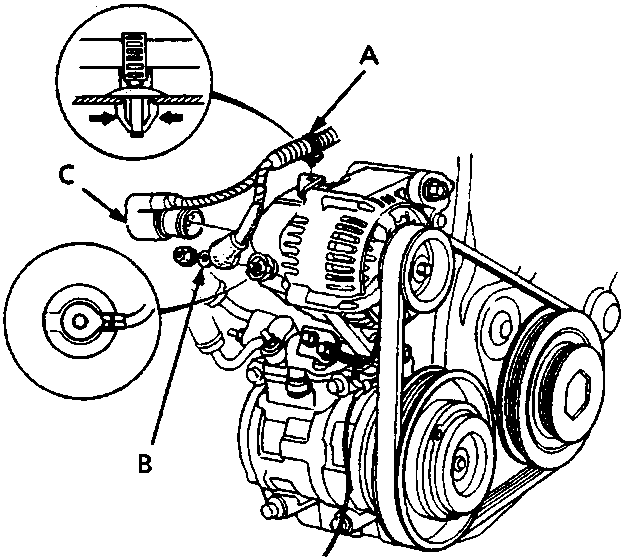

Diagram of alternator assembly showing harness holder, connector, and terminal with callouts A, B, C

A Harness holder
B Terminal
C Connector

  1. Remove the harness holder, connector and the terminal from the alternator.

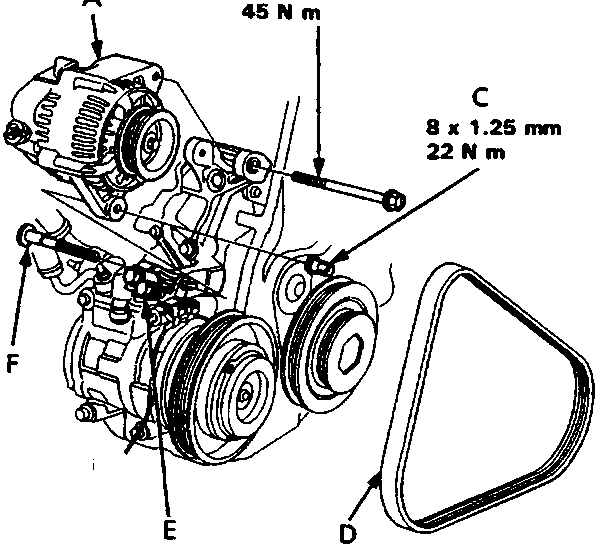

Diagram of alternator and A/C compressor area showing mounting bolts, adjusting bolt, and belt with callouts A, B, C, D, E, F and torque specifications 10 x 1.25 mm 45 N m and 8 x 1.25 mm 22 N m

A Alternator
B Upper mounting bolt
C Lower mounting nut
D A/C compressor belt
E Adjusting bolt
F Lower mounting bolt
