Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement12 · Clutch
12 · Transmission

Clutch cable - ’R65’ gearbox

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs › Clutch cable - ’R65’ gearbox
ClutchClutch cable - ’R65’ gearbox · page 1 of 2

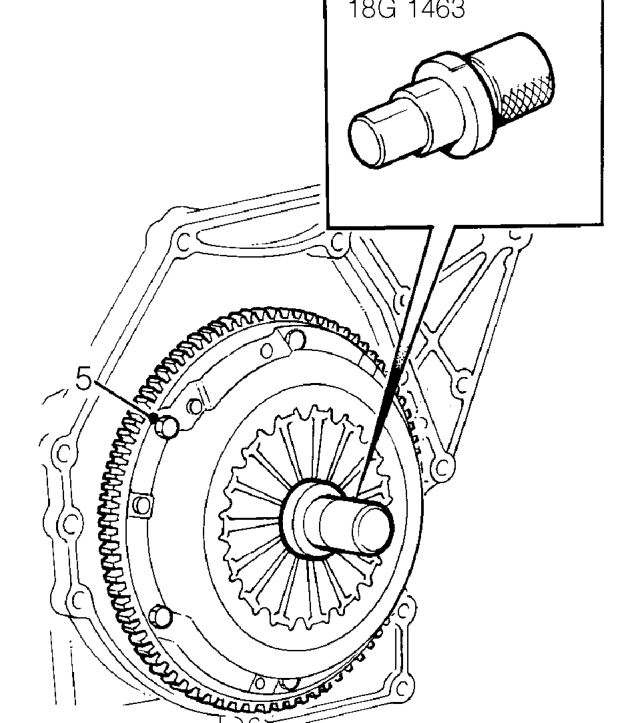

Diagram
  1. Fit pressure plate to flywheel and fit alignment tool 18G 1483.
  2. Fit 6 bolts securing pressure plate to flywheel finger tight.
  3. Working in a diagonal sequence, progressively tighten bolts to 26 Nm.
  4. Remove drive plate alignment tool 18G 1483.
  5. Remove flywheel locking tool 18G 1674.
  6. Clean clutch release fork and release bearing guide sleeve.
  7. Smear release fork shaft and bore of release bearing with Molybdenum disulphide grease.
  8. Fit release bearing to release fork and slide onto guide sleeve.
  9. Operate release lever to ensure that release bearing is correctly located on release fork and slides smoothly on guide sleeve.
  10. Fit gearbox assembly. See MANUAL GEARBOX - ’PG1’, Repairs.

CLUTCH CABLE - ’R65’ GEARBOX

Service repair no - 33.25.05

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

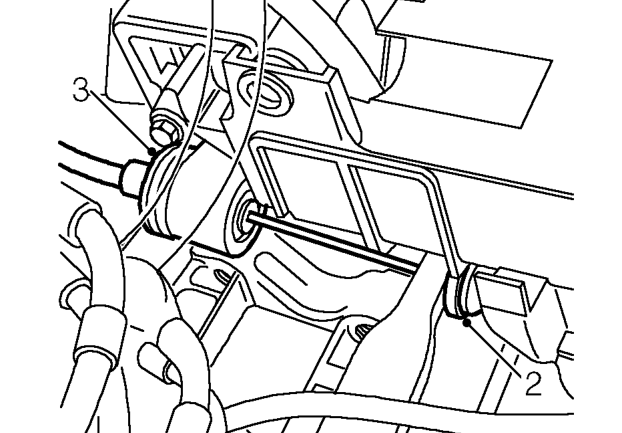

Clutch cable - ’r65’ gearbox – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Disconnect clutch cable from clutch release lever.
  2. Release cable from abutment bracket.

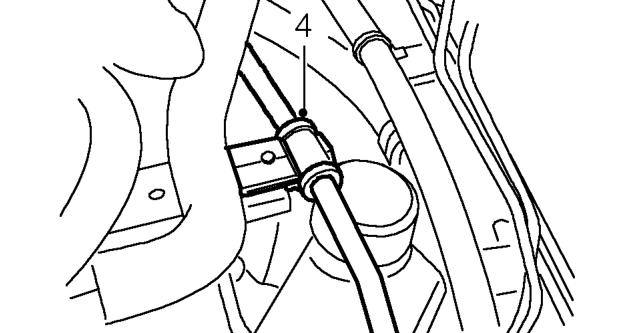

Clutch cable - ’r65’ gearbox – Release cable from abutment bracket.
  1. RHD models only: Release clutch cable from clip on bracket.
