Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Buckle mounting

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Seats and seat belts › Buckle mounting
BodyBuckle mounting

Buckle mounting

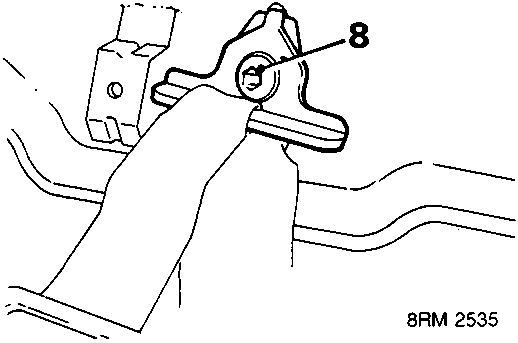

Diagram showing a hand removing a bolt from a buckle mounting bracket
  1. Remove bolt, mounting to floor, and remove mounting.

Refit

Buckle mounting

  1. Position mounting to centre bolt and floor.
  2. Fit buckle mounting bolt and tighten to 32 Nm.

Reel and belt

  1. Position reel on rear parcel shelf. Fit and tighten bolts to 32 Nm.
  2. Position seat belt guide bracket, fit and tighten bolts to 9 Nm.
  3. Fit belt guide cover to belt and bracket.
  4. Position seat belt to lower anchorage point. Fit and tighten bolt to 32 Nm.
  5. Fit rear seat squab and cushion.
  6. Refit luggage compartment side trim casing.

CENTRE REAR SEAT BELT – 400 SERIES

Service Repair No. 76.73.20

Remove

  1. Remove rear cushion.

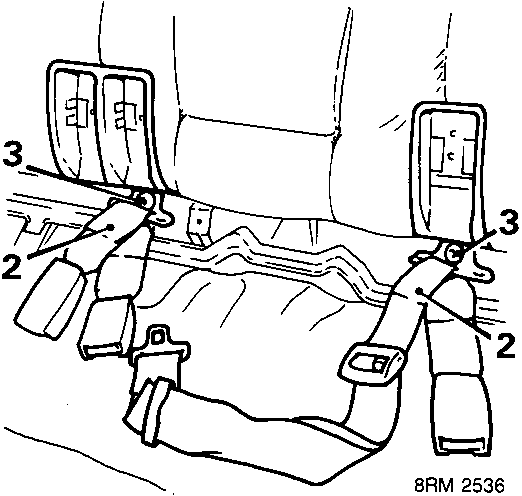

Diagram showing the release of mountings and belts from clips at the rear of the squab
  1. Release mounting and belt from clip at rear of squab.
  2. Remove 2 bolts, mountings to body, and remove mountings.
  3. Remove centre belt from mounting.
  4. Remove centre mounting from side mounting.

Refit

  1. Position centre mounting to side mounting.
  2. Position and align seat belt mountings to body. Fit and tighten bolt to 32 Nm.
  3. Position centre belt to side mounting.
  4. Position and align seat belt mountings to body. Fit and tighten bolt to 32 Nm.
  5. Secure mountings and belt to squab clips.
  6. Refit rear cushion.
