BodyCentre rear seat belt – 200 series

CENTRE REAR SEAT BELT – 200 SERIES

Service Repair No. 76.73.20

Remove

  1. Fold rear seat cushion forward.
  2. Release buckles and belt from clips in rear squab.

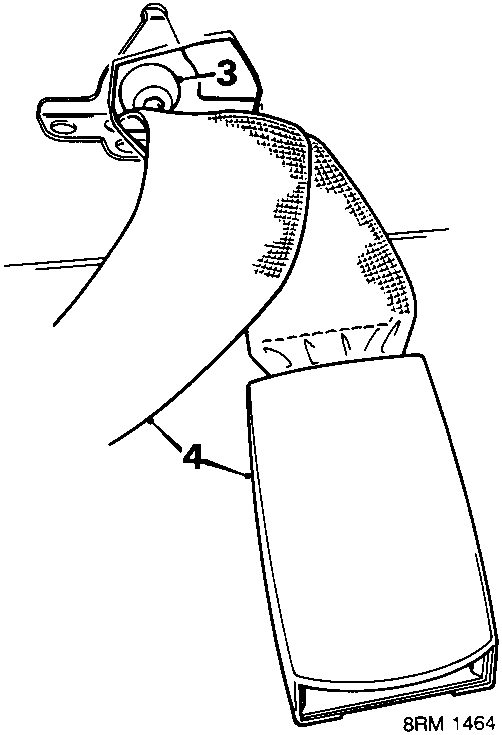

Diagram showing the release of a centre rear seat belt buckle (3) and belt (4) from clips in the rear squab
  1. Remove 2 bolts, buckles and belt to body. Note position of side belt buckles.
  2. Remove buckles and belt.
  3. Remove centre belt from buckle.
  4. Remove centre buckle from side buckle.

Refit

  1. Position centre buckle to side buckle.
  2. Position and align buckles to body.
  3. Fit bolt, buckles to body and tighten to 32 Nm.
  4. Position centre belt to side buckle.
  5. Position and align buckle and belt to body.
  6. Fit bolt, buckle and belt to body and tighten to 32 Nm.
  7. Secure buckle and belt to squab clips.
  8. Fold rear seat cushion into its up position. Check that the seat catches have engaged properly.

REAR SEAT BELT – 400 SERIES

Service Repair No. 76.73.23

Remove

Reel and belt

  1. Remove luggage compartment side trim casing.
  2. Remove rear seat cushion and squab.

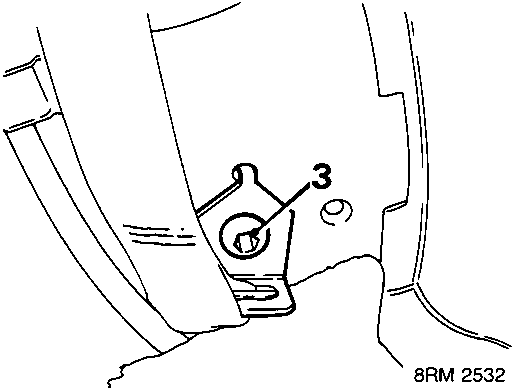

Diagram showing the lower anchorage bolt (3) for the rear seat belt reel
  1. Remove lower anchorage bolt.

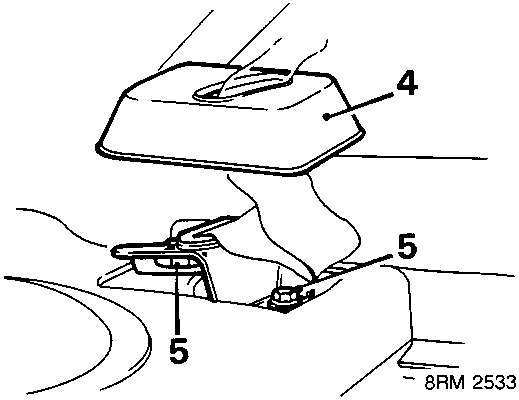

Diagram showing the belt guide cover (4), belt guide bracket (5) and their attachment points
  1. Release belt guide cover.
  2. Remove 2 bolts, belt guide to body and release belt guide bracket.

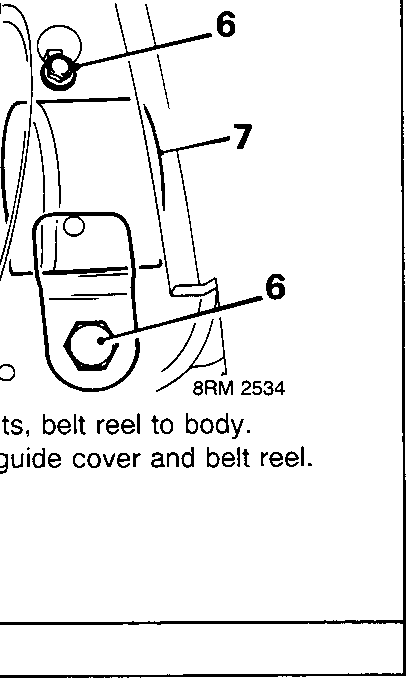

Diagram showing the belt reel (6) and belt guide cover (7) being removed from the body
  1. Remove 2 bolts, belt reel to body.
  2. Remove belt guide cover and belt reel.
