Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Seats and seat belts › Remove
BodyRemove

Service Repair No. 76.73.23

Remove

Reel and belt

  1. Remove rear window tray.
  2. Fold rear seats forward.

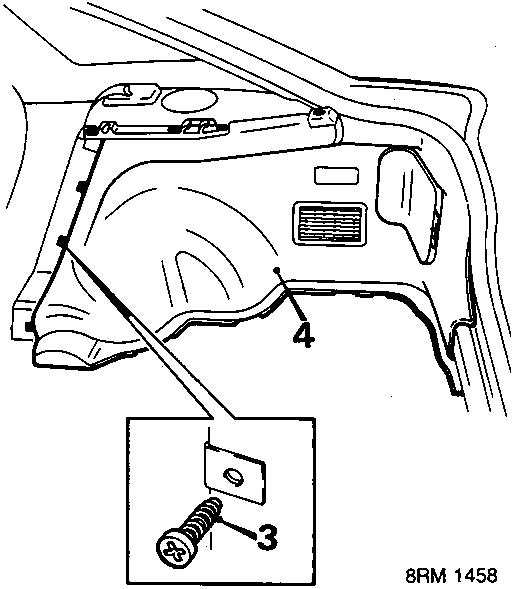

Diagram showing the location of screws (3) in the carpet and a release point (4) near the rear seat structure.
  1. Remove 9 screws from carpet.
  2. Release carpet.

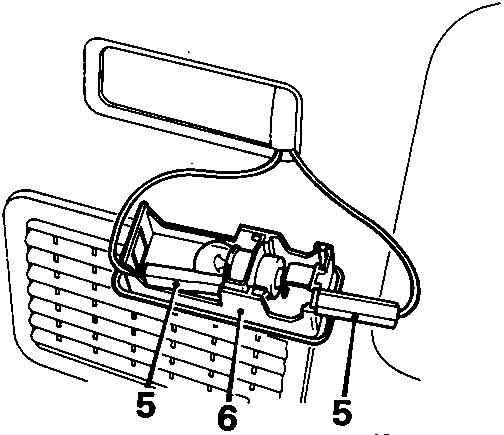

Diagram showing the luggage compartment area with Lucar connectors (5) and the luggage compartment lamp (6).
  1. R.H. only: Disconnect Lucar connectors from luggage compartment lamp.
  2. R.H. only: Remove luggage compartment lamp.
  3. Remove luggage compartment side valance carpet.

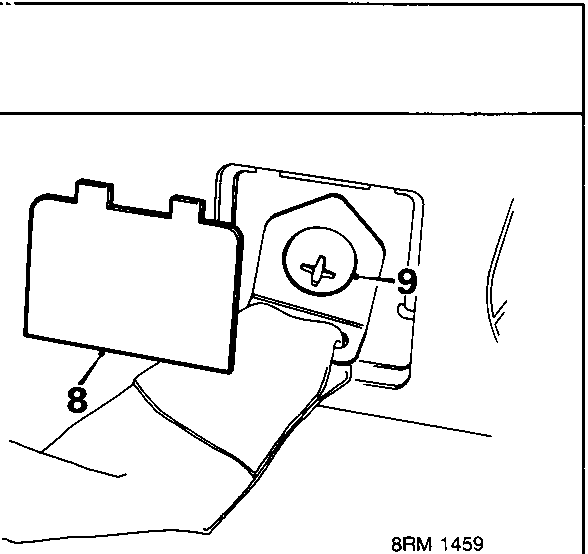

Diagram showing the lower anchorage bolt (9) and cover (8) located behind the seat.
  1. Remove cover from lower anchorage bolt.
  2. Remove bolt, lower anchorage to body.

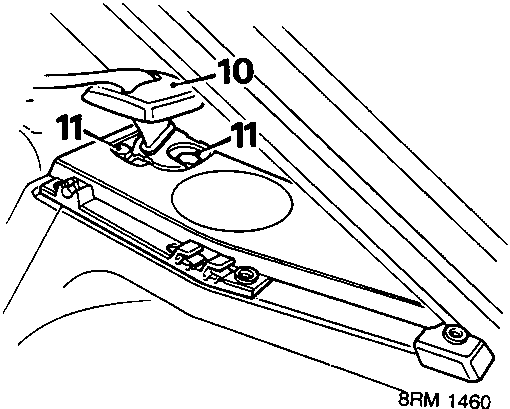

Diagram showing the belt guide cover (10) and two bolts (11) securing the belt guide bracket to the body.
  1. Release belt guide cover.
  2. Remove 2 bolts, belt guide to body and release guide bracket.
Close-up diagram of the rear seat catch striker rubber (12).
  1. Remove rear seat catch striker rubber.
