Seats and seat belts › Refit
BodyRefit

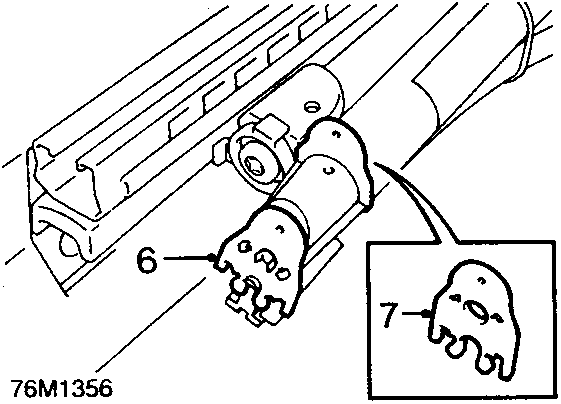

Diagram showing a pretensioner mechanism with callout numbers 6 and 7, and an inset detail of the key end.
  1. Release RED service key from end of pretensioner.
  2. Insert service key into slot in pretensioner and push to secure.

Note: The service key must always be inserted in the pretensioner before removal to prevent accidental firing of the unit.

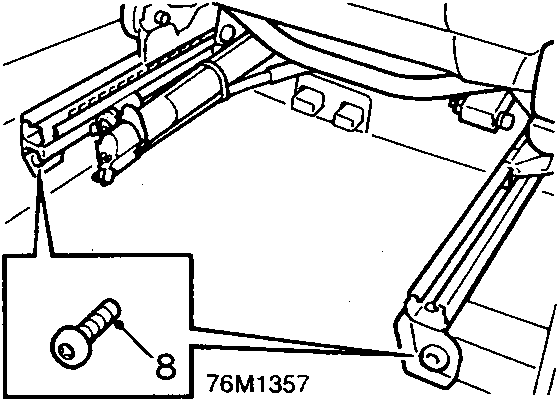

Diagram showing seat slides attached to the vehicle floor with callout number 8 indicating a bolt.
  1. Remove 2 Torx bolts securing seat slides to floor.
  2. Remove seat assembly from vehicle.

Refit

  1. Position seat in vehicle and align rear bolt holes.
  2. Fit bolt to rear of each seat slide, do not tighten.
  3. Slide seat backwards and align front bolt holes.
  4. Fit bolt to the front of each slide, tighten to 45 Nm.
  5. Slide seat forwards.
  6. Tighten seat slide rear bolts to 45 Nm.
  7. Remove service key from slot in pretensioner and secure toclip on the end of the unit.
  8. Fit pretensioner cover and secure with screw.
  9. Adjust seat to central position.

REAR SEAT CUSHION – 200 SERIES

Service Repair No. 78.10.17.99

Remove

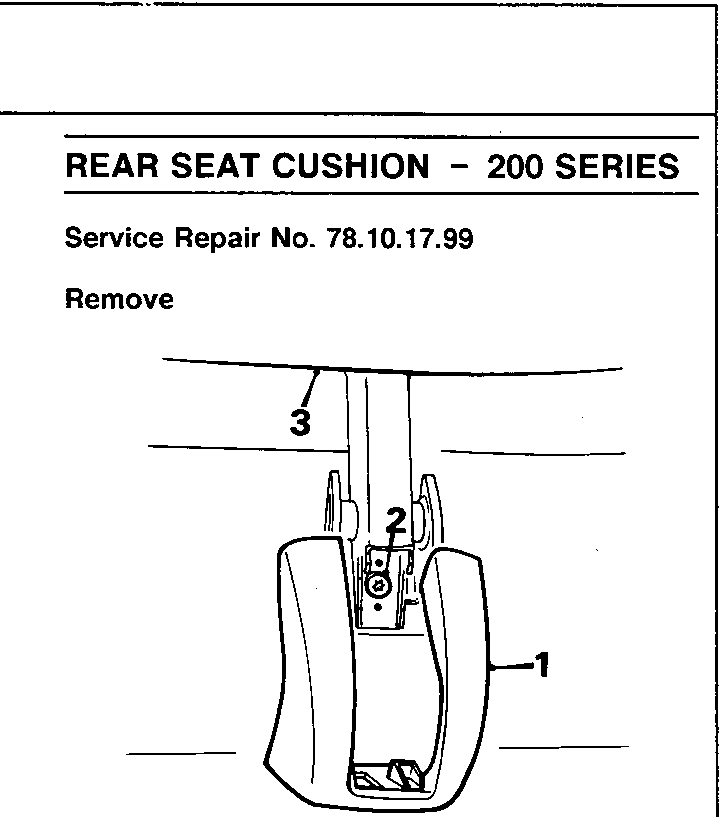

Diagram showing the rear seat cushion hinge area with callout numbers 1, 2, and 3.
  1. Remove hinge covers from below cushion.
  2. Remove 2 bolts, cushion hinges to floor.
  3. Remove cushion from vehicle.

Refit

  1. Position cushion to vehicle.
  2. Fit cushion hinge bolts, tighten to 25 Nm.
  3. Fit covers to hinges below cushion.
  4. Push cushion down to locate under squab.
