Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Stalk

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Seats and seat belts › Stalk
BodyStalk

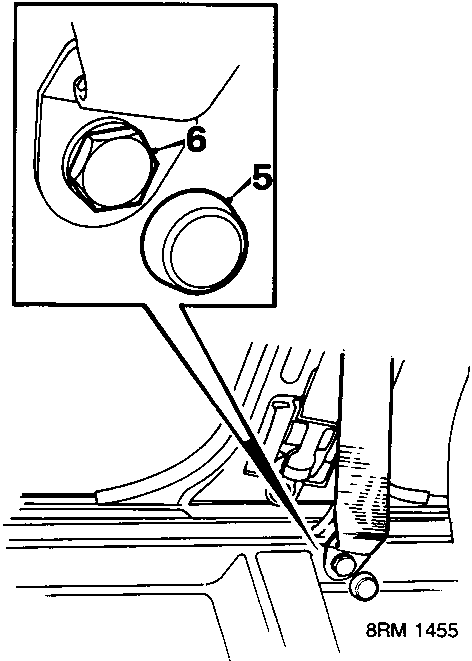

Diagram showing lower anchorage bolt area with callout numbers 5 and 6, reference 8RM 1455
  1. Remove cover from lower anchorage bolt.
  2. Remove lower anchorage bolt and release belt from 'B' post.

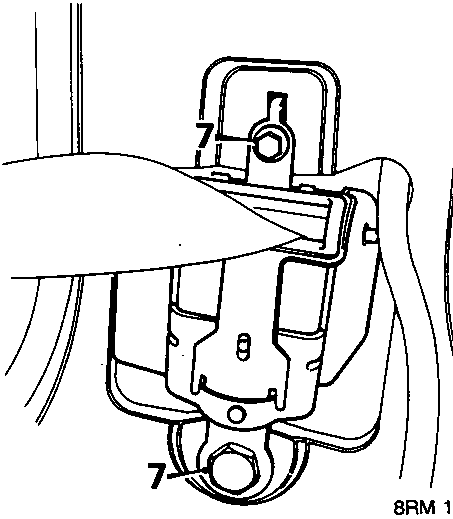

Diagram showing seat belt reel being removed from B post with callout number 7, reference 8RM 1456
  1. Remove 2 bolts, reel to 'B' post and remove reel.

Stalk

  1. Remove front seat.

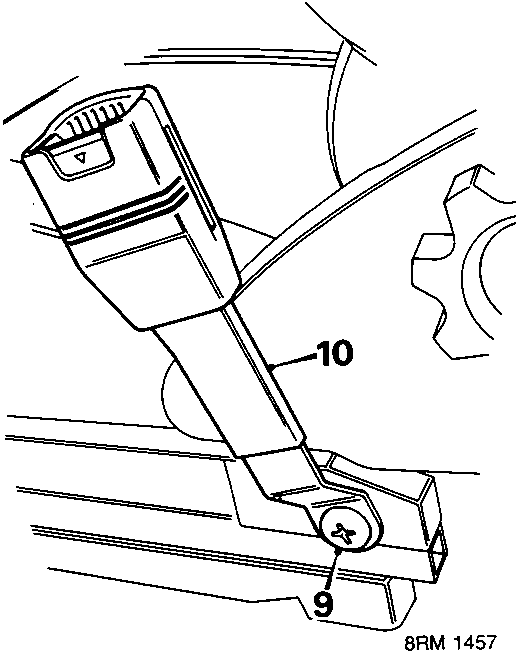

Diagram showing seat belt stalk removal from seat with callout numbers 9 and 10, reference 8RM 1457
  1. Remove bolt, seat belt stalk to seat.
  2. Remove seat belt stalk

Refit

Stalk

  1. Position stalk to seat and tighten bolt to 32 Nm.
  2. Fit front seat.

Belt and reel

  1. Fit reel assembly and tighten bolts, top to 32 Nm and bottom to 9 Nm.
  2. Feed belt from reel and attach to upper anchorage point, tighten nut to 25 Nm.
  3. Fit cover to upper anchorage and secure guide to 'B' post.
  4. Position lower anchorage to sill and tighten bolt to 32 Nm.
  5. Fit bolt cover and 'B' post finisher.
