Seats and seat belts › Remove
BodyRemove

Service Repair No. Belt and reel 76.73.33

Remove

  1. Remove rear window tray.
  2. Fold rear seat forward and remove rear seat squab.

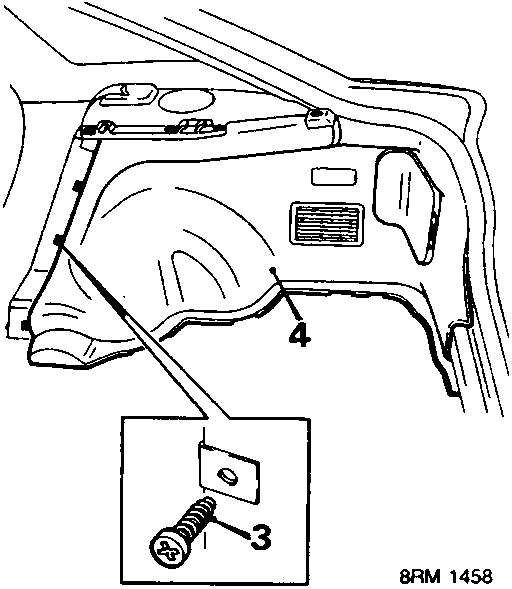

Diagram showing the rear interior trim panel with callout numbers 3 and 4, reference 8RM 1458
  1. Remove 7 screws from carpet.
  2. Release carpet.

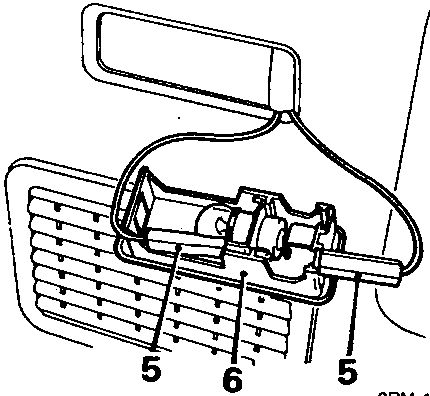

Diagram of luggage compartment lamp assembly with callout numbers 5 and 6, reference 8RM 1574
  1. R.H. valance only: Disconnect Lucar connectors from luggage compartment lamp.
  2. R.H. valance only: Remove luggage compartment lamp.
  3. Remove luggage compartment side valance carpet.

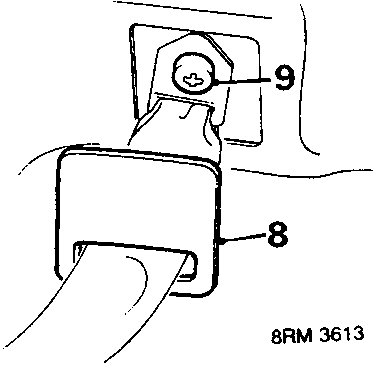

Diagram of rear lower anchorage bolt area with callout numbers 8 and 9, reference 8RM 3613
  1. Remove cover from rear lower anchorage bolt.
  2. Remove bolt, lower anchorage to body

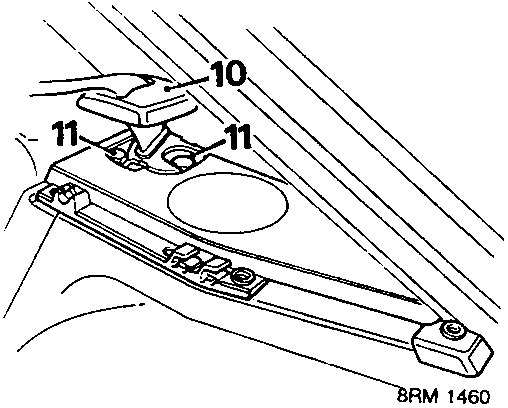

Diagram of belt guide bracket area with callout number 10 and two callouts labeled 11, reference 8RM 1460
  1. Release belt guide cover.
  2. Remove 2 bolts securing belt guide and release guide bracket.
Diagram of rear seat catch striker rubber with callout number 12, reference 8RM 3614
  1. Remove rear seat catch striker rubber.

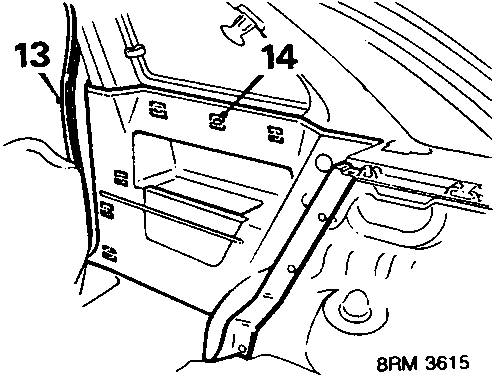

Diagram of lower trim casing and door sealing rubber area with callout numbers 13 and 14, reference 8RM 3615
  1. Release door sealing rubber.
  2. Remove lower trim casing.
