Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Seat belt buckle

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Seats and seat belts › Seat belt buckle
BodySeat belt buckle

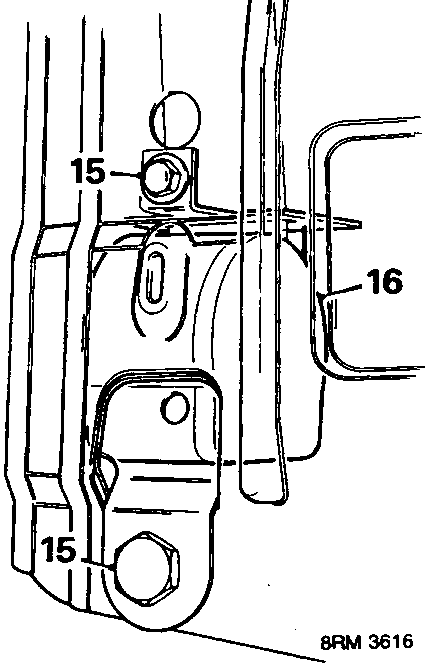

Diagram showing seat belt reel and guide bracket assembly with callout numbers 15 and 16
  1. Remove 2 bolts, reel to body.
  2. Remove belt guide cover and remove reel and belt assembly.
  1. Seat belt buckle: Position seat belt buckle, fit bolt and tighten to 32 Nm.
  2. Fit belt reel to body and fit bolts,tighten upper bolt to 9 Nm and lower to 32 Nm.
  3. Fit belt guide bracket, fit and tighten bolts to 32 Nm.
  4. Position belt guide cover on belt, and fit cover to bracket.
  5. Fit belt to lower anchorage point, tighten bolt to 32 Nm.
  6. Fit lower anchorage bolt cover.
  7. Fit rear lower trim casing.
  8. Fit luggage compartment lamp and connect lucar connectors.
  9. Fit luggage compartment carpet.
  10. Fit rear seat squab.
  11. Fit rear window tray.

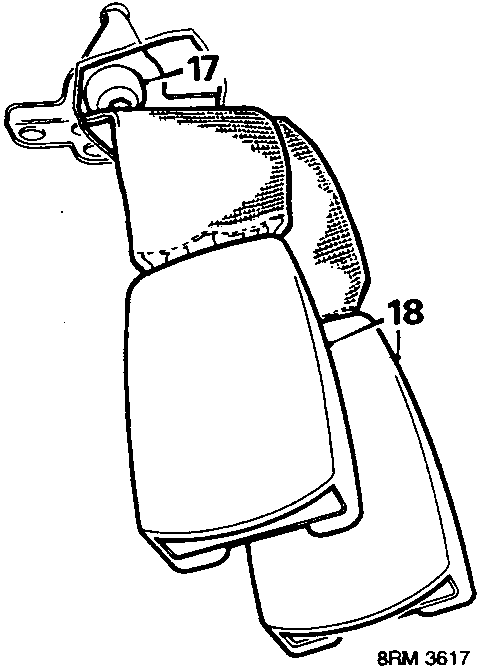

Diagram showing seat belt buckle assembly with callout numbers 17 and 18

Seat belt buckle

  1. Remove bolt securing seat belt buckle to floor.
  2. Remove seat belt buckle.
    Note position of centre belt buckle or belt.
