REAR SEAT SQUAB – 200 SERIES

Service Repair No. 78.10.58

Remove

  1. Remove rear window tray and fold forward rear seat.

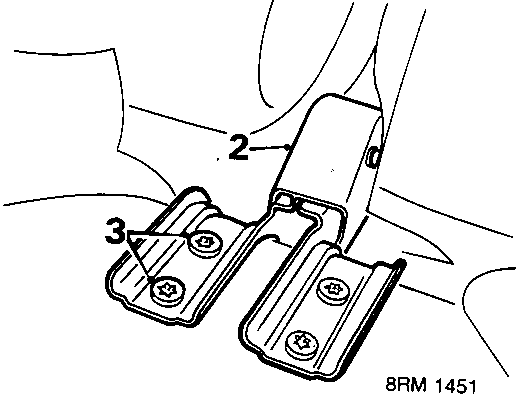

Diagram showing the rear seat squab hinge mechanism with callout numbers 2 and 3, reference 8RM 1451
  1. Remove cover from centre hinge and fold back carpet.
  2. Remove 2 Torx bolts, squab hinge to floor.

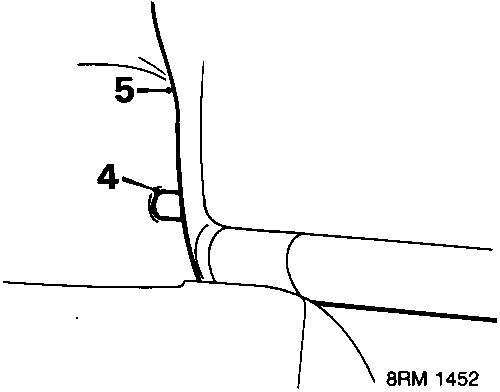

Diagram showing the release of the squab from the outer hinge pin with callout numbers 4 and 5, reference 8RM 1452
  1. Release squab from outer hinge pin.
  2. Remove squab assembly from vehicle.

Refit

  1. Position squab assembly onto outer hinge pin.
  2. Fit bolts squab hinge to floor, tighten to 25 Nm.
  3. Refit centre hinge cover, raise and secure rear seats.
  4. Fold down carpet and refit rear window tray.

REAR SEAT CUSHION – 400 SERIES

Service Repair No. 78.10.17.99

Remove

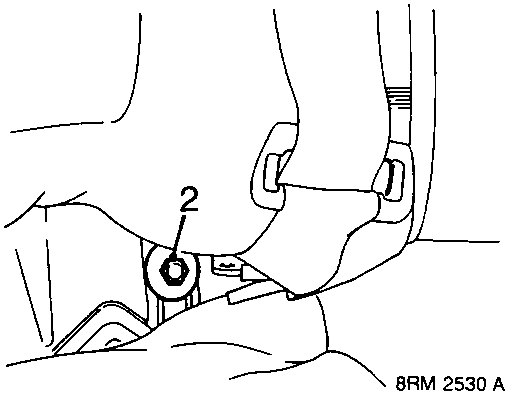

Diagram showing the rear seat cushion securing bolt with callout number 2, reference 8RM 2530 A
  1. Open rear door
  2. Remove bolt securing cushion and squab to floor
  3. Release cushion from squab
  4. Remove cushion

Refit

  1. Position cushion to vehicle
  2. Engage cushion hooks to floor
  3. Align cushion to squab
  4. Fit and tighten securing bolt
  5. Close door
