Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual22 · Body
22 · Body & interior

Cushion

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Seats and seat belts › Cushion
BodyCushion

Cushion

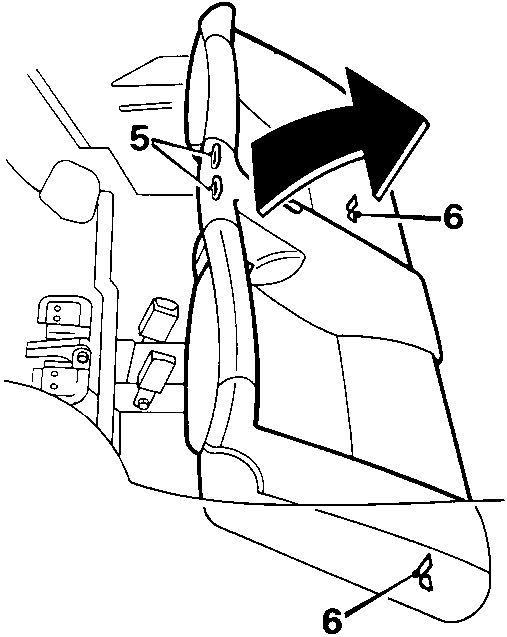

Diagram showing the removal of a seat cushion, with callout numbers 5 and 6 pointing to retaining hooks and hinge spigots.
  1. Disengage cushion retaining hooks from beneath inboard squab hinge spigots.
  2. Raise rear edge of cushion to disengage forward mounting hooks and remove cushion.

Refit

Cushion

  1. Engage seat cushion in its forward mounting points and lower cushion into position.
  2. Ensure both inboard squab hinges are correctly located on their spigots, inboard of cushion retaining hooks.
  3. Engage rear mounting hooks beneath inboard squab hinge spigots.

Squabs

  1. Push inboard squab hinges rearward as far as possible.
  2. Engage both squabs in their outboard hinges and loosely fit bolts to inboard hinges.
  3. Raise both squabs into upright position and ensure correct alignment before finally tightening inboard hinge fixings from inside luggage compartment space.
  4. Refit luggage compartment carpet.

SEAT BELT, REEL AND STALK – FRONT

Note: For models fitted with pretensioners, see Seat belt pretensioner.

Service Repair No. Belt and reel – 76.73.31
Service Repair No. Stalk – 76.73.30

Remove

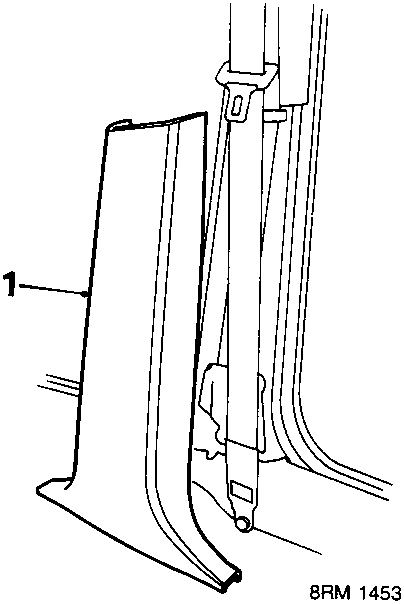

Diagram showing the removal of the 'B' post finisher, with callout number 1.
  1. Remove 'B' post finisher.

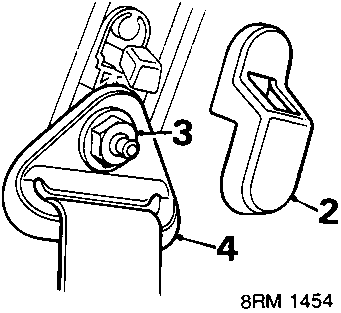

Diagram showing the upper seat belt anchorage, with callout numbers 2, 3, and 4 indicating the cover, nut, and seat belt.

Belt and reel

  1. Remove cover from upper seat belt anchorage.
  2. Remove nut, seat belt to anchorage.
  3. Remove seat belt from upper anchorage.
