Seats and seat belts › Remove
BodyRemove

Note: For models fitted with pretensioners, see Seat belt pretensioner.

Service Repair No. Belt and reel – 76.73.31
Service Repair No. Stalk – 76.73.30

Remove

Belt and reel

  1. Remove rear window tray.
  2. Fold rear seat cushion forward and remove rear seat squab, see Rear seat squab – 200 Series.

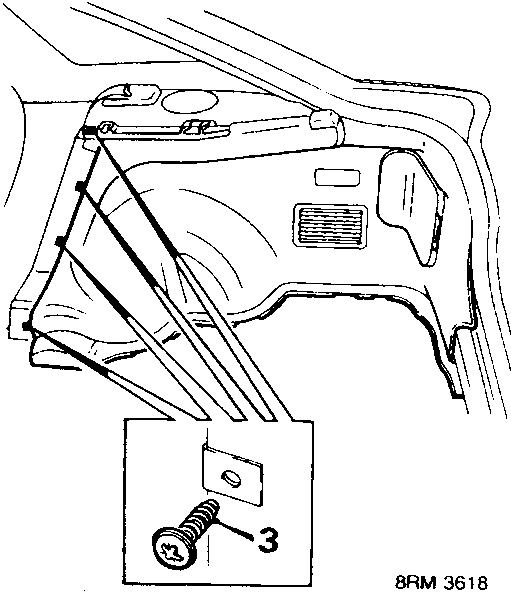

Diagram showing the lower trim casing area in the luggage compartment with a screw being removed from the carpet securing it to the body.
  1. Remove 4 screws securing lower trim casing to luggage compartment carpet.

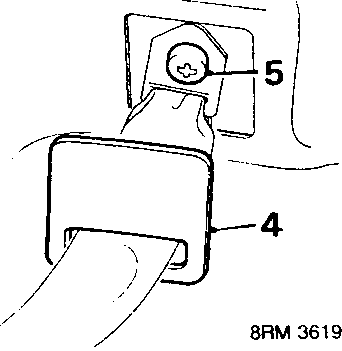

Diagram showing the rear lower anchorage bolt covered by a plastic cover, with the cover and bolt numbered.
  1. Remove cover from rear lower anchorage bolt.
  2. Remove bolt, lower anchorage to body.
  3. Release seat belt.
Diagram of the rear seat catch striker rubber component.
  1. Remove rear seat catch striker rubber.

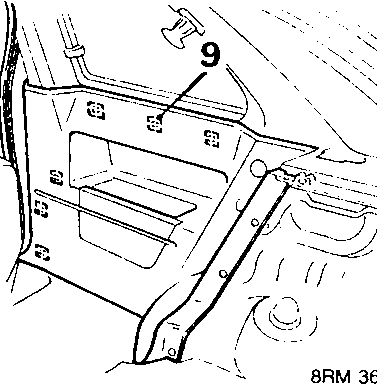

Diagram showing the release of door sealing rubber and removal of the lower trim casing near the rear seat area.
  1. Release door sealing rubber.
  2. Remove lower trim casing.

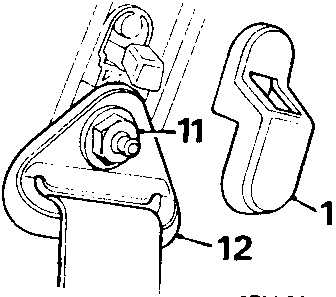

Diagram showing the front upper seat belt anchorage with the cover, nut, and seat belt being removed.
  1. Remove cover from front upper seat belt anchorage.
  2. Remove nut, seat belt to anchorage.
  3. Remove seat belt from upper anchorage.

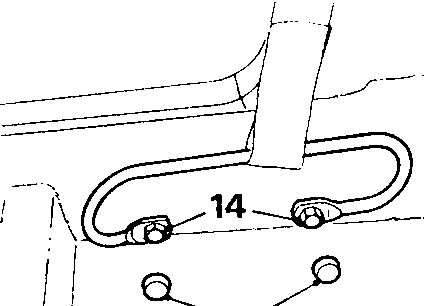

Diagram showing the two lower anchorage bolts and their covers on the vehicle floor.
  1. Remove 2 lower anchorage bolt covers.
  2. Remove 2 lower anchorage bolts.
