Seats and seat belts › Remove
BodyRemove

Service Repair No. 76.73.23

Remove

Stalk assembly

  1. Remove both rear seat squabs and rear seat cushion.

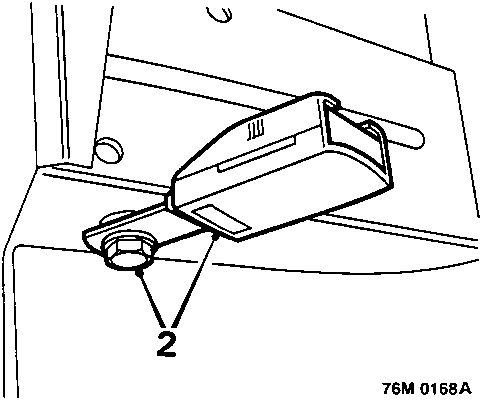

Diagram showing the seat belt stalk assembly secured to the body with a bolt, labeled 2.
  1. Remove bolt securing seat belt stalk to body and remove stalk assembly.

Belt reel assembly

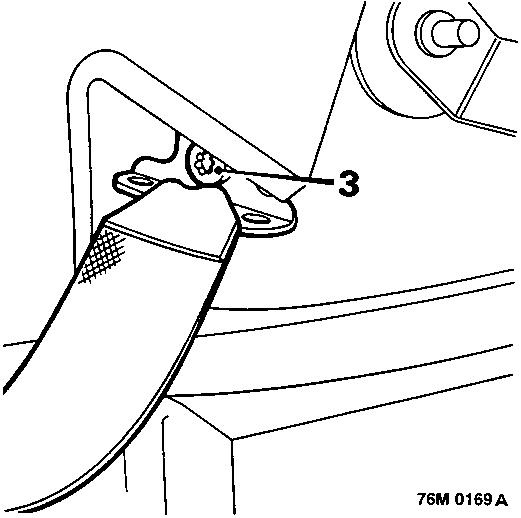

Diagram showing the lower fixing bolt, labeled 3, on the seat belt strap.
  1. Remove lower fixing bolt (TX50 Torx bit) from seat belt strap.

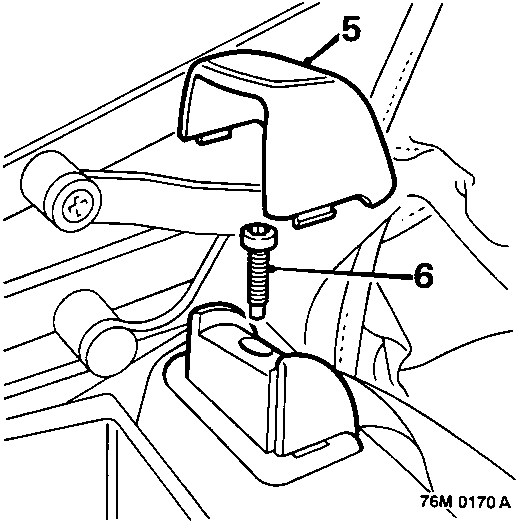

Diagram showing the rear shelf trim (5), seat belt guide cover (not numbered but indicated), and belt guide securing bolt (6).
  1. Remove rear shelf trim.
  2. Remove seat belt guide cover
  3. Remove belt guide securing bolt (TX 30 Torx bit) and remove belt guide.

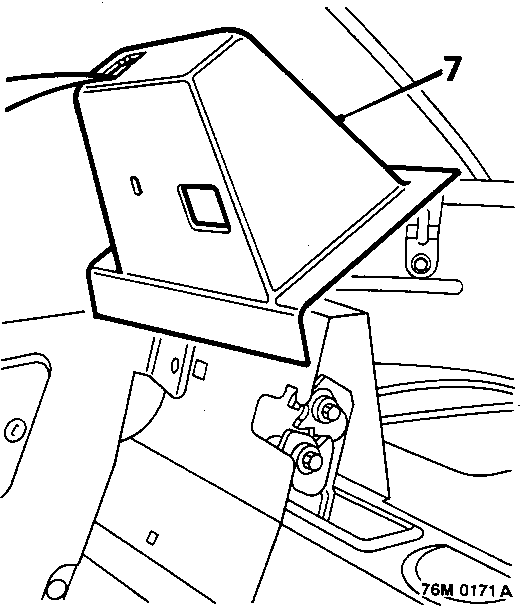

Diagram showing the trim being removed from the seat squab latch bracket, labeled 7.
  1. Remove trim from seat squab latch bracket.

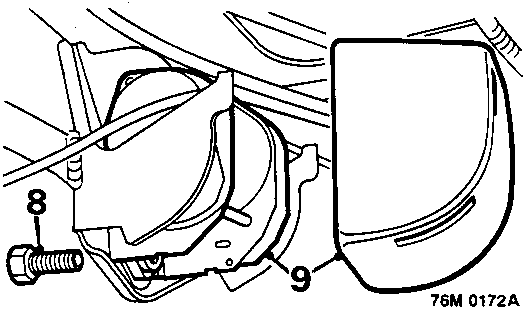

Diagram showing the seat belt reel mounting bolt (8) and the cover (9) on the reel assembly.
  1. Remove bolt from seat belt reel mounting.
  2. Remove cover from seat belt reel and remove reel assembly.
