Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual27 · Instruments
27 · Electrical

Coolant temperature transmitter – 2.0

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Coolant temperature transmitter – 2.0
InstrumentsCoolant temperature transmitter – 2.0

COOLANT TEMPERATURE TRANSMITTER – 2.0

Service Repair No. 88.25.32

Remove

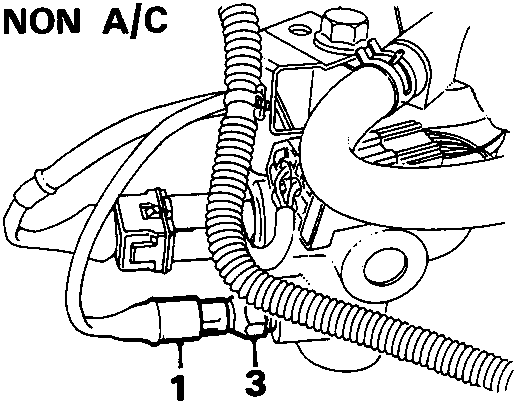

Diagram showing coolant temperature transmitter location for NON A/C model, with callout numbers 1 and 3

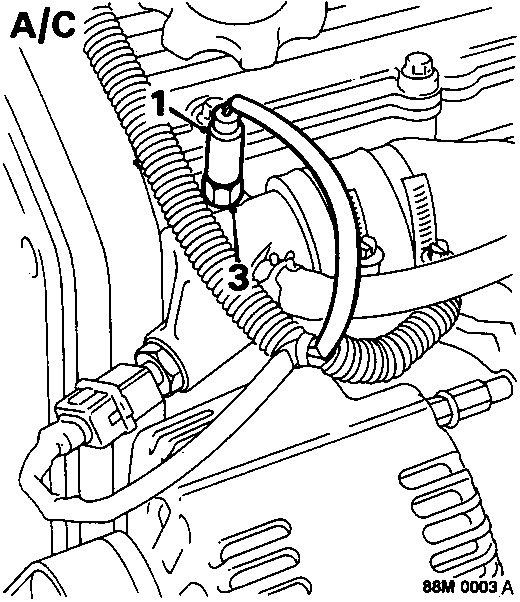

Diagram showing coolant temperature transmitter location for A/C model, with callout numbers 1 and 3
  1. Disconnect lead from coolant temperature transmitter.
  2. Position drain tray beneath thermostat housing.
  3. Remove coolant temperature transmitter.

Refit

  1. Clean threads of coolant temperature transmitter.
  2. Fit coolant temperature transmitter and tighten to 14 Nm.
  3. Connect lead to coolant temperature transmitter.
  4. Top – up cooling system, see MAINTENANCE.

SPEEDOMETER CABLE ASSEMBLY – LOWER – 1.4

Service Repair No. 88.30.09

Remove

  1. Raise front of vehicle.
    WARNING: Support on safety stands.

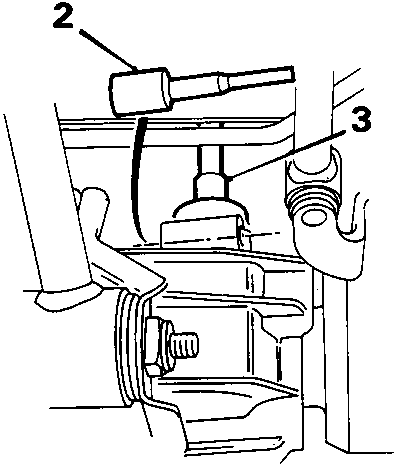

Diagram showing speedometer cable connection at gearbox, with callout numbers 2 and 3
  1. Remove cable rubber securing pin from gearbox.
  2. Release cable from gearbox.

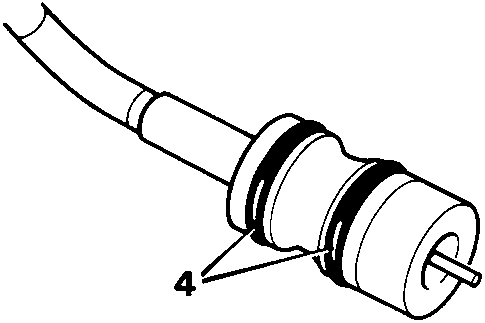

Diagram showing speedometer cable end fitting with 'O' rings, callout number 4
  1. Remove 'O' rings from cable.
