InstrumentsRemove

Service Repair No. 88.15.07

Remove

  1. Disconnect battery earth lead.

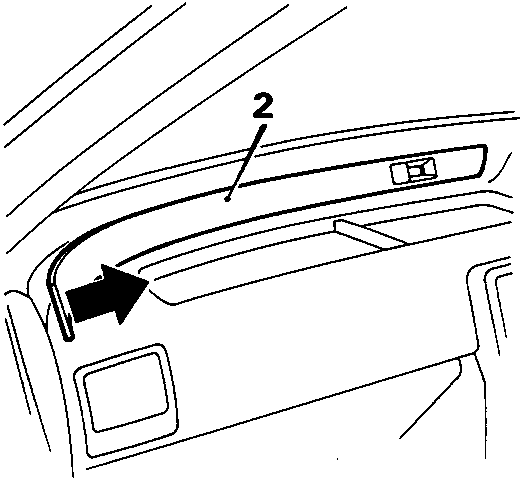

Diagram showing the removal of a veneer strip from the dashboard fascia, indicated by callout number 2 and an arrow.

8RM 0782

  1. Remove veneer strip from fascia, using screwdriver.

CAUTION: Wrap screwdriver bit with a soft cloth to protect surfaces from damage.

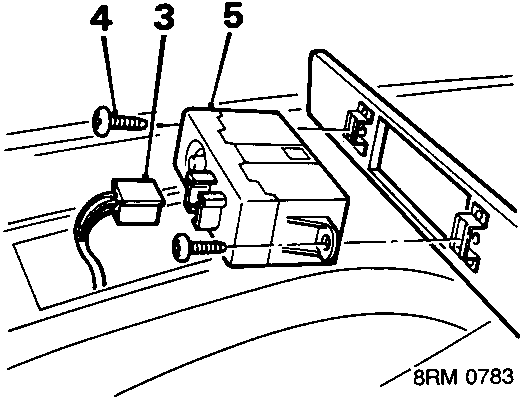

Diagram showing the clock unit removed from the fascia, with callouts for the multiplug (3), screws (4), and the clock (5).

8RM 0783

  1. Remove multiplug from clock.
  2. Remove 2 screws securing clock.
  3. Remove clock.

Refit

  1. Fit clock to veneer strip.
  2. Secure using 2 screws.
  3. Fit multiplug to clock.
  4. Fit veneer strip to fascia.
  5. Connect battery earth lead.
