Repairs › Panel illumination board
InstrumentsPanel illumination board

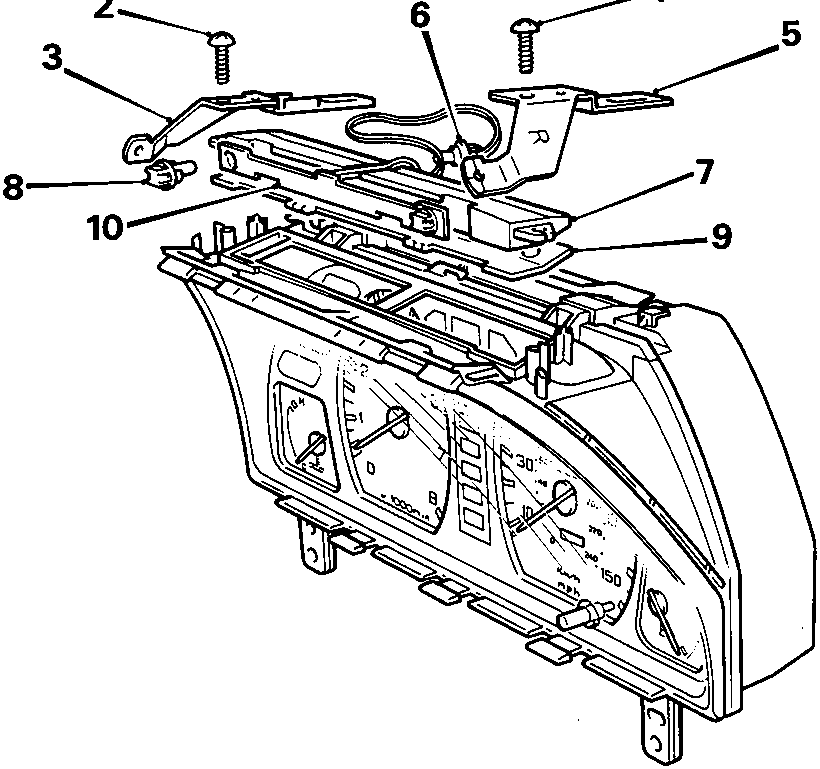

Exploded view diagram of the instrument pack showing the illumination board, support brackets, screws, and bulb holders with callout numbers 1 through 10.

PANEL ILLUMINATION BOARD

Service Repair No. 88.20.07

Remove

  1. Remove instrument pack.
  2. Remove screw securing L.H. support bracket.
  3. Remove L.H. support bracket.
  4. Remove screw securing R.H. support bracket.
  5. Remove R.H. support bracket.
  6. Turn anti - clockwise to remove bulb and bulb holder.
  7. Remove illumination board assembly.
  8. Release bulb and bulb holders.
  9. Remove illumination cover.
  10. Remove illumination board.

Refit

  1. Fit illumination board to panel.
  2. Fit illumination cover to panel.
  3. Fit bulb and bulb holder.
  4. Fit illumination board assembly.
  5. Fit bulb and bulb holder, turn clockwise to secure.
  6. Fit R.H. support bracket.
  7. Fit and tighten screw.
  8. Fit L.H. support bracket.
  9. Fit and tighten screw.
  10. Fit instrument pack.
