InstrumentsPanel illumination and warning light bulbs

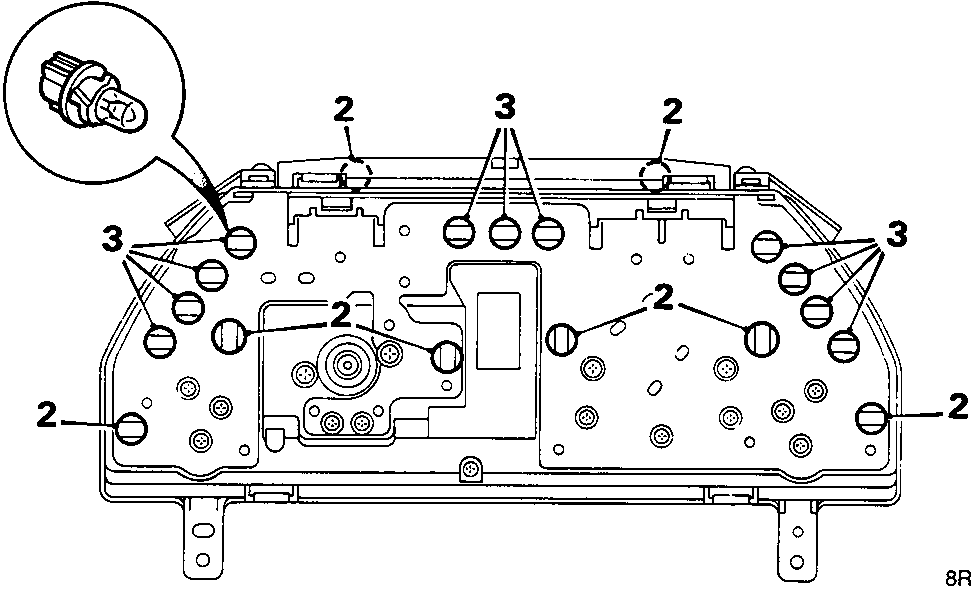

Diagram of the rear of an instrument pack showing multiple screw locations labeled with callout numbers 2 and 3, and a close-up inset of a bulb connector. The figure reference number 8FM 0774 is printed at the bottom right.

PANEL ILLUMINATION AND WARNING LIGHT BULBS

Service Repair No. 88.45.31

Remove

  1. Remove instrument pack.
  2. Turn illumination bulbs anti – clockwise to remove.
  3. Turn warning light bulbs anti – clockwise to remove.

Refit

  1. Fit warning light bulbs, turn clockwise to secure.
  2. Fit illumination bulbs, turn clockwise to secure.
  3. Fit instrument pack.
