InstrumentsRemove

Service Repair No. 12.60.50

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

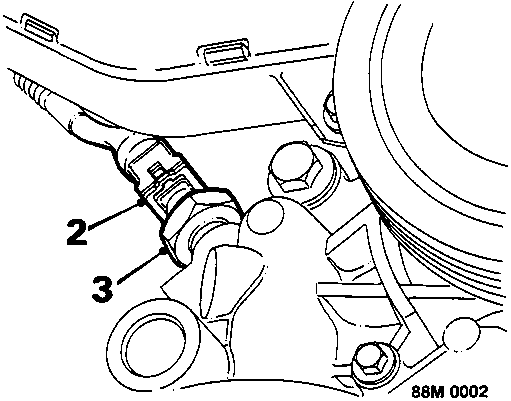

Diagram showing oil pressure switch (3) and multiplug (2) location on engine block
  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Fit oil pressure switch and tighten to 12 Nm.
  2. Connect multiplug.
  3. Remove stand(s) and lower vehicle.

COOLANT TEMPERATURE TRANSMITTER 1.4 AND 1.6

Service Repair No. 88.25.32

Remove

  1. Position drain tray.
  2. Disconnect battery earth lead.
  1. Disconnect lead from coolant temperature transmitter.
  2. Remove coolant temperature transmitter.

Refit

  1. Clean coolant temperature transmitter threads.
  2. Fit coolant temperature transmitter and tighten to:
    9 Nm for 1.6, 10 Nm for 1.4.
  3. Connect lead to the coolant temperature transmitter.
  4. Top – up the coolant system, see MAINTENANCE
  5. Connect battery earth lead.
Illustrates fuel injector removal and installation procedure
