InstrumentsSpeedometer

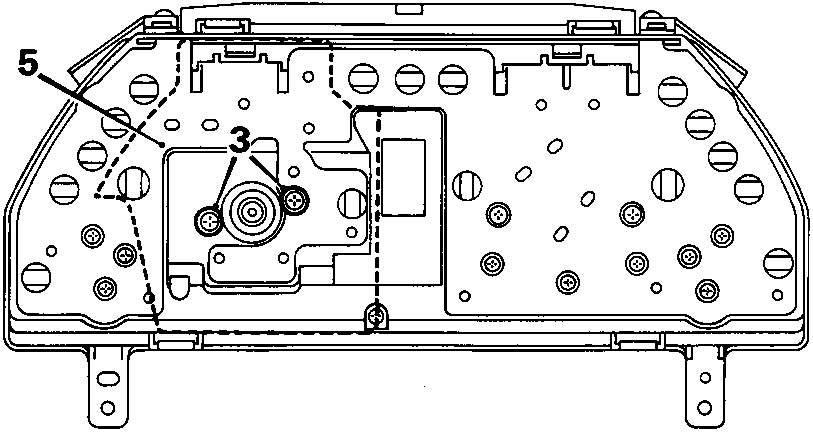

Diagram of the rear of an instrument pack showing internal components and mounting points, with callout numbers 3 and 5 visible.

8RM 0780 A

SPEEDOMETER

Service Repair No. 88.30.01

Remove

  1. Remove instrument pack.
  2. Remove instrument panel window and faceplate.
  3. Remove 2 screws and washers.
  4. Remove speedometer.

Refit

  1. Position speedometer.
  2. Fit 2 screws and washers.
  3. Fit instrument panel window and faceplate.
  4. Fit instrument pack.
