InstrumentsRemove · page 1 of 2

Service Repair No. 88.20.01

Remove

  1. Disconnect battery earth lead.

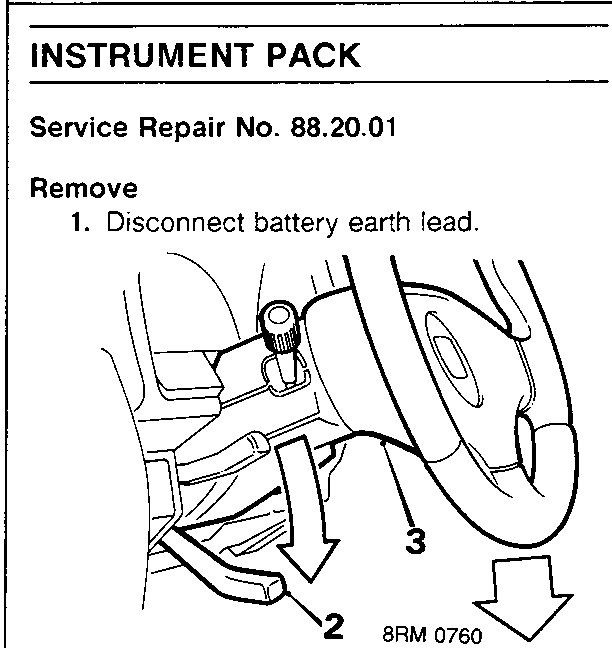

Diagram showing release of column height adjuster and lowering of steering column
  1. Release column height adjuster.
  2. Lower column.
  3. Tighten column height adjuster.

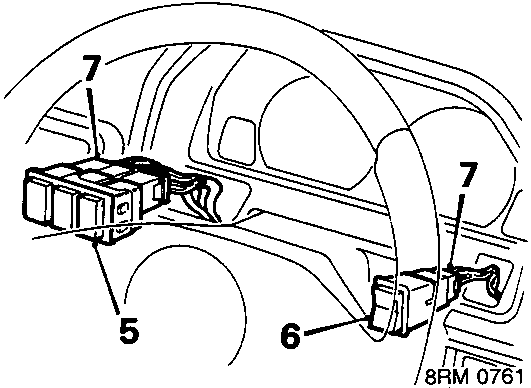

Diagram showing release of L.H. switch pack and sunroof switch from cowl
  1. Release L.H. switch pack from cowl, using a flat ended screwdriver.
  2. Release sunroof switch from cowl, using a screwdriver.

CAUTION: When removing switches from cowl protect screwdriver with a soft cloth.

  1. Disconnect multiplugs from switches.
  2. Remove switch pack and sun roof switch.

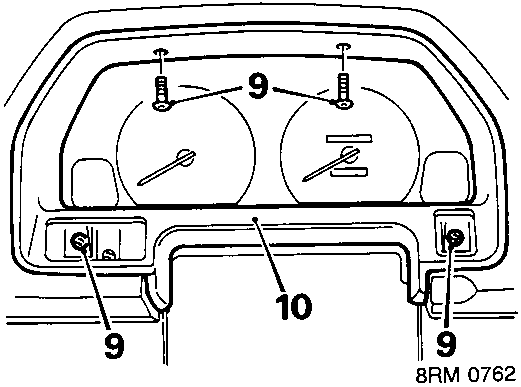

Diagram showing removal of screws securing the instrument cowl
  1. Remove 4 screws securing cowl.
  2. Remove cowl.

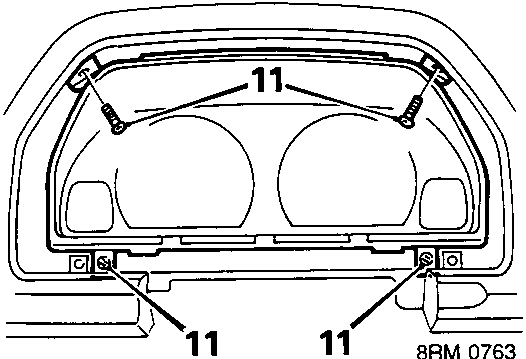

Diagram showing location of screws securing the instrument pack within the fascia
  1. Remove 4 screws securing instrument pack.

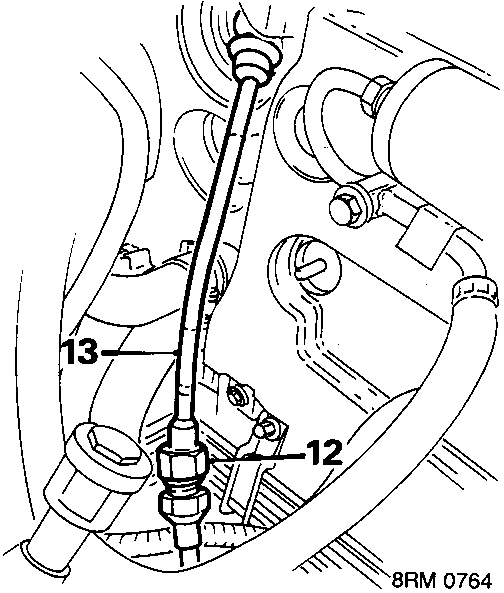

Diagram showing speedometer cable connection at bulkhead for 1.4 engine only
  1. 1.4 only: Unscrew union nut upper to lower speedometer cable.
  2. 1.4 only: Release the cables.
  3. Push speedometer cable through bulkhead and release instrument pack from fascia.

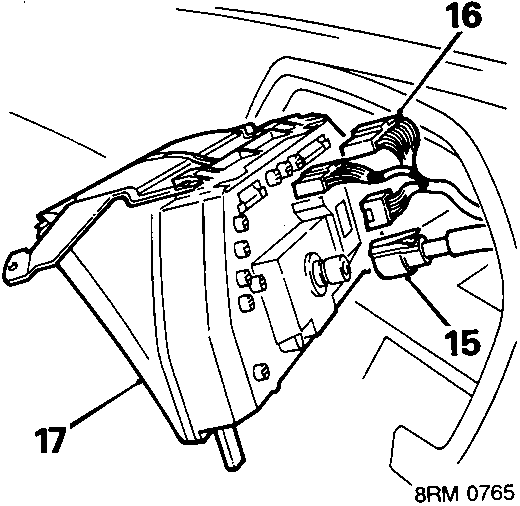

Diagram showing depression of locking prong and disconnecting of multiplugs from instrument pack
  1. Depress locking prong and pull speedometer cable from speedometer.
  2. Disconnect 3 multiplugs.
  3. Remove instrument pack.
