InstrumentsInstrument panel window and faceplate

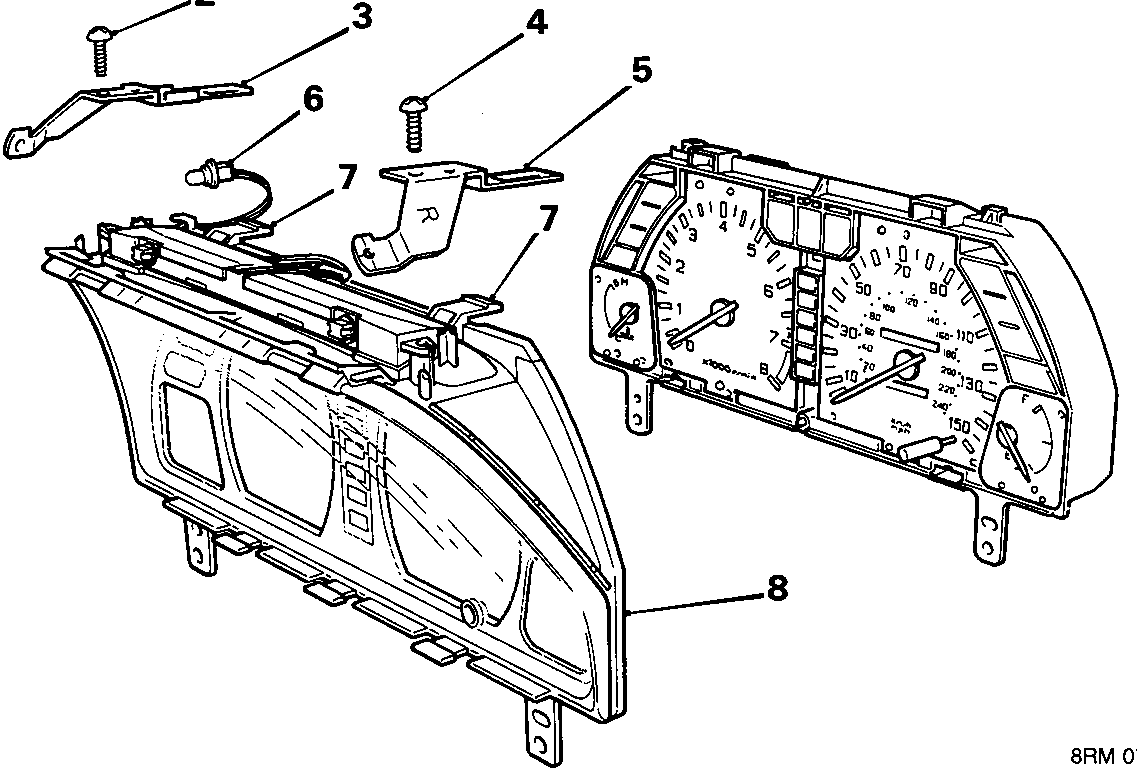

Exploded view diagram of the instrument panel window, faceplate, support brackets, screws, and panel illumination board bulb holder, with parts numbered 1 through 8.

INSTRUMENT PANEL WINDOW AND FACEPLATE

Service Repair No. 88.20.06

Remove

  1. Remove instrument pack.
  2. Remove screw securing L.H. support bracket.
  3. Remove L.H. support bracket.
  4. Remove screw securing R.H. support bracket.
  5. Remove R.H. support bracket.
  6. Turn panel illumination board bulb anti – clockwise to remove.
  7. Release instrument panel window and faceplate clips.
  8. Remove instrument panel window and faceplate.

Refit

  1. Fit instrument panel window and faceplate.
  2. Snap clips into place.
  3. Fit panel illumination board bulb and bulb holder, turn clockwise to secure.
  4. Fit R.H. support bracket.
  5. Fit and tighten screws securing support bracket.
  6. Fit L.H. support bracket.
  7. Fit and tighten screws securing support bracket.
  8. Fit instrument pack.
