Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual27 · Instruments
27 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
InstrumentsRemove

Service Repair No. 88.30.06

Remove

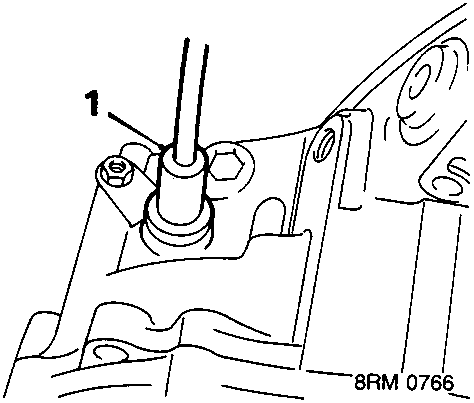

Diagram showing the gearbox end of the speedometer cable with callout number 1 pointing to the cover.
  1. Release cover at gearbox end of speedometer cable.

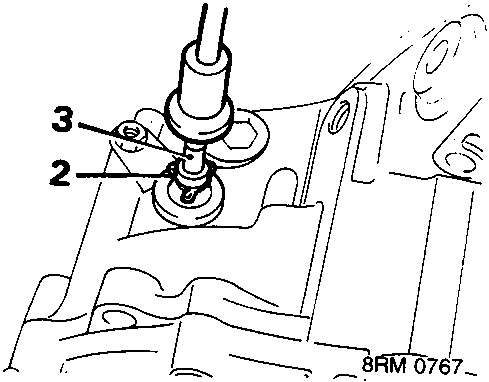

Diagram showing the gearbox end of the speedometer cable with callout numbers 2 and 3 pointing to the securing clip and cable connection.
  1. Remove cable securing clip.
  2. Release cable from gearbox.

Refit

  1. Fit tape to end of new cable.
  2. Fit grommet to cable.
  3. Position cable in vehicle.
  4. Feed cable through bulkhead.
  5. Fit grommet to bulkhead.
  6. Gently ease down demist duct, feed the cable over pedal bracket and through steering column support bracket.

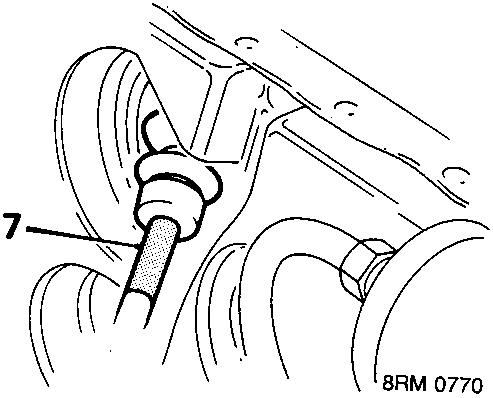

Diagram showing the speedometer cable being fed through a grommet in the bulkhead area, with callout number 7.
  1. Draw speedometer cable through grommet and ensure that coloured tape abuts grommet.
  2. Remove tape from end of cable.
  3. Fit instrument pack.
  4. Clean cable ends.
  5. Connect upper and lower cables.
  6. 1.4 K8: Tighten nut upper to lower cable to 9 Nm.
Illustrates alignment of vehicle chassis frame rails
