Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual27 · Instruments
27 · Electrical

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
InstrumentsRemove · page 1 of 2

Service Repair No. 88.25.32

Remove

  1. Disconnect battery earth lead.
  2. Open luggage compartment.
  3. Lift luggage compartment floor carpet to gain access to access plate.

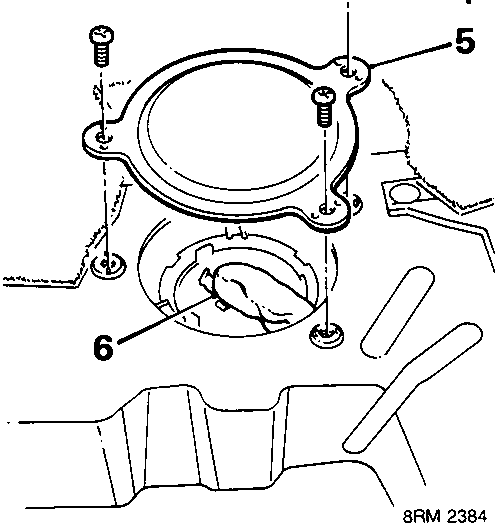

Diagram showing access plate screws (4), access plate (5) and multiplug cover (6) in luggage compartment floor
  1. Remove screws securing access plate to floor.
  2. Remove access plate.
  3. Release multiplug cover.

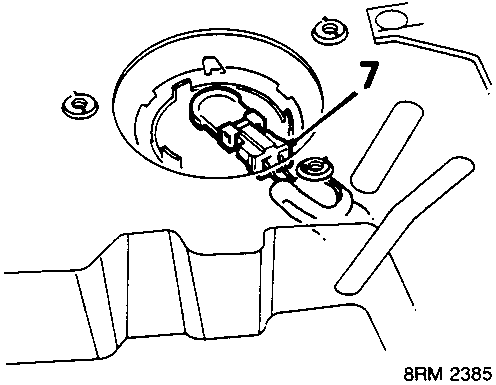

Diagram showing disconnecting the multiplug (7) from the fuel tank unit
  1. Disconnect multiplug from tank unit.

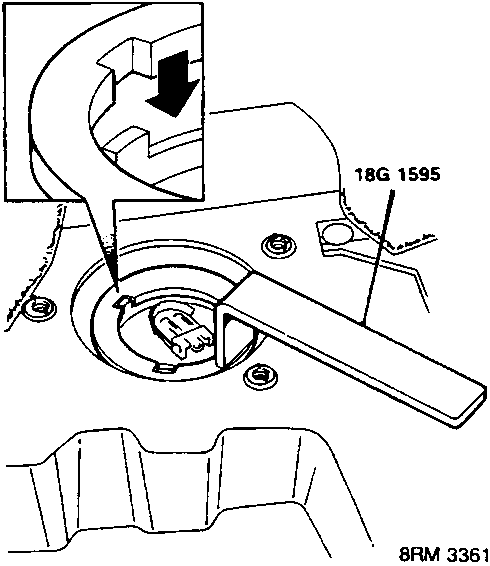

Diagram showing positioning tool 18G 1595 on the locking ring of the fuel tank unit
  1. Position tool 18G 1595 to locking ring.
  2. Release locking ring by turning anti – clockwise.
  3. Remove tool 18G 1595.

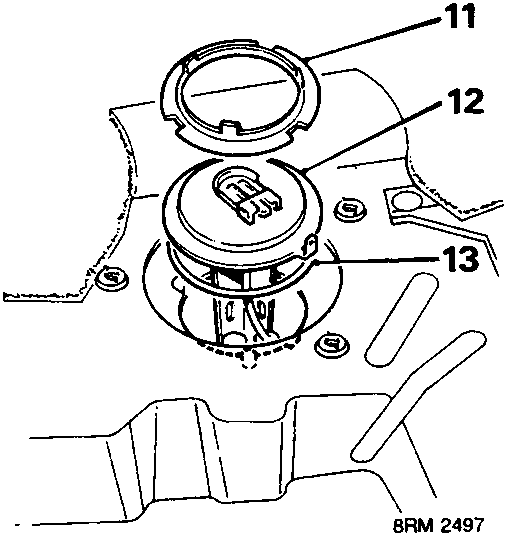

Diagram showing removal of locking ring (11), fuel tank unit (12) and sealing ring (13)
  1. Remove locking ring.
  2. Remove fuel tank unit.
  3. Remove sealing ring.

Refit

  1. Clean fuel tank unit and mating surface.
  2. Fit seal to fuel tank unit.
