InstrumentsTachometer

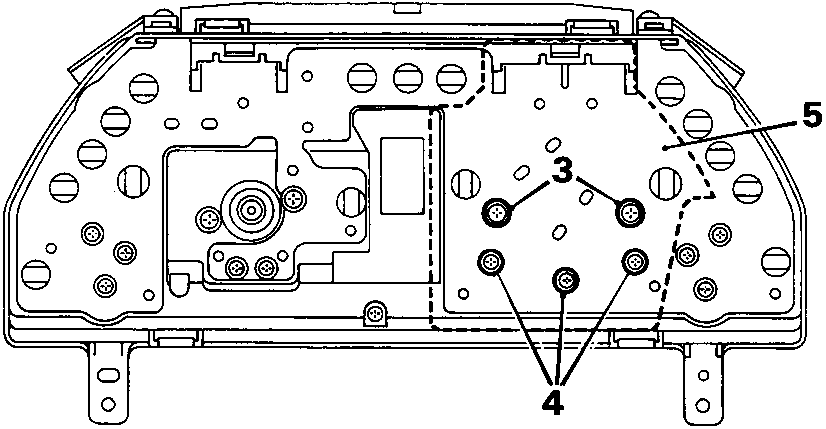

Diagram showing the rear of an instrument pack with callout numbers 3, 4, and 5 indicating screw locations

8RM 0779

TACHOMETER

Service Repair No. 88.30.21

Remove

  1. Remove instrument pack.
  2. Remove instrument panel window and faceplate.
  3. Remove 2 large screws and washers.
  4. Remove 3 small screws and washers.
  5. Remove tachometer.

Refit

  1. Position tachometer.
  2. Secure using 2 large and 3 small screws and washers.
  3. Fit instrument panel window and faceplate.
  4. Fit instrument pack.
