InstrumentsFuel gauge and coolant temperature gauge

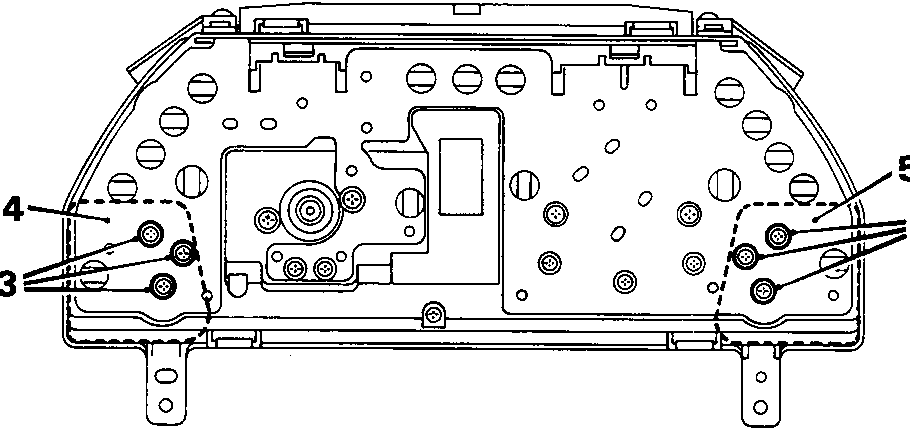

Diagram of the rear of an instrument pack showing callout numbers 3, 4, and 5 pointing to specific mounting points and components.

8RM 0778

FUEL GAUGE AND COOLANT TEMPERATURE GAUGE

Service Repair No. Fuel gauge 88.25.14

Service Repair No. Coolant temperature gauge 88.25.26

Remove

  1. Remove instrument pack.
  2. Remove instrument panel window and faceplate.
  3. Remove 3 screws securing fuel gauge or temperature gauge.
  4. Remove fuel gauge.
  5. Remove coolant temperature gauge.

Refit

  1. Position fuel gauge or coolant temperature gauge.
  2. Secure using 3 screws.
  3. Fit instrument panel window and faceplate.
  4. Fit instrument pack.
