Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual27 · Instruments
27 · Electrical

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
InstrumentsRefit

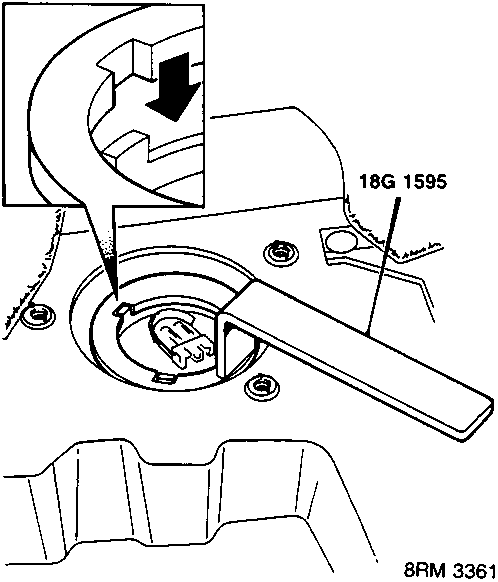

Diagram showing tool 18G 1595 positioned on a locking ring inside a fuel tank assembly

8RM 3361

  1. Position tool 18G 1595 to locking ring.
  2. Release locking ring by turning anti – clockwise.
  3. Remove tool 18G 1595.

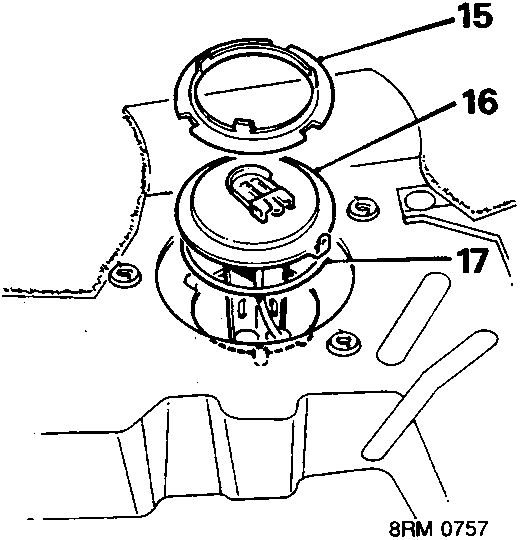

Diagram of fuel tank unit with callout numbers 15, 16, and 17 pointing to the locking ring, fuel tank unit, and sealing ring respectively

8RM 0757

  1. Remove locking ring.
  2. Remove fuel tank unit.
  3. Remove sealing ring.

Refit

  1. Clean fuel tank unit and fuel tank joint surfaces.
  2. Fit seal to fuel tank unit.

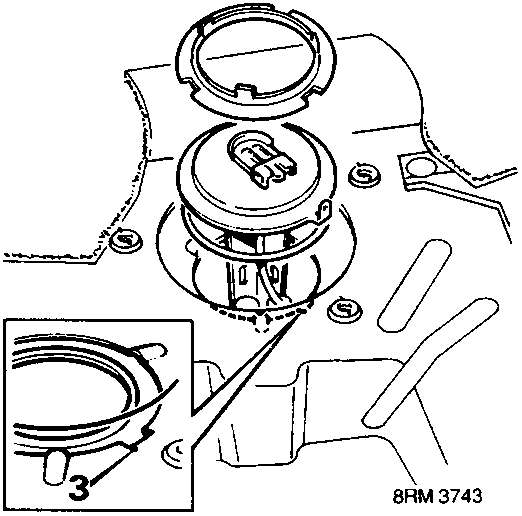

Diagram showing fuel tank unit float being inserted into the tank, with an inset detail of the cover tag alignment

8RM 3743

  1. Insert fuel tank unit float, align cover tag with cut out in fuel tank, and press cover into place.

CAUTION: To ensure accurate operation of the fuel gauge, ensure the float and calibration bar are clear of tank bottom when aligning tag to cut out.

  1. Fit locking ring, turn clockwise to engage.
  2. Secure locking ring by using tool 18G 1595.
  3. Remove tool.
  4. Connect multiplug to tank unit, fit cover.
  5. Position access plate, fit and tighten screws.

Note: Ensure that locations pins mate correctly with plate.

  1. Reposition carpet.
  2. Raise and secure rear seat.
  3. Close rear door.
  4. Refit parcel tray.
  5. Connect parcel tray cords to taildoor.
  6. Close taildoor.
  7. Connect battery earth lead.
