Exhaust Heat Shield Replacement (Diesel and Gasoline)
Callout
|
Component Name
|
|
Warning:
In order to avoid being burned, do not service
the exhaust system while it is still hot. Service the system when
it is cool. |
|
Warning:
Always wear protective goggles and gloves when
removing exhaust parts as falling rust and sharp edges from worn
exhaust components could result in serious personal injury.
|
Preliminary Procedure
Remove the exhaust front pipe. Refer to
Exhaust Front Pipe Replacement .
|

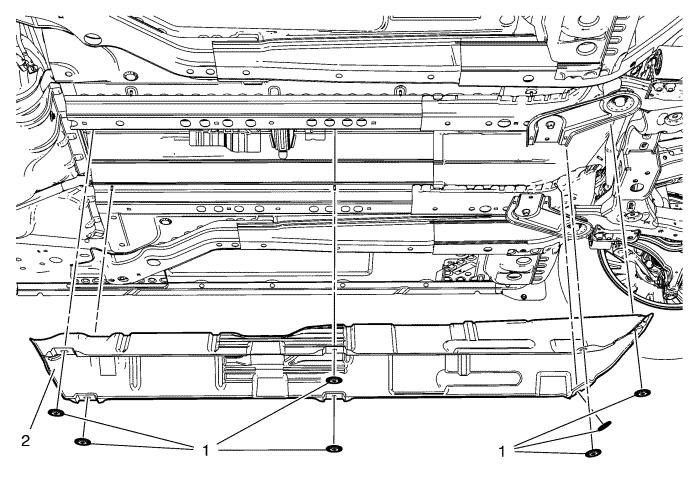

1
|
Heat Shield Retainer (Qty: 7)
|
2
|
Heat Shield
|
|
| |
|
