Exhaust Rear Silencer Heat Shield Replacement (Engine Exhaust)

Make

Vauxhall

Model

Astra J

Section

Engine Exhaust › Repair Instructions › Exhaust Rear Silencer Heat Shield Replacement

EngineExhaust Rear Silencer Heat Shield Replacement

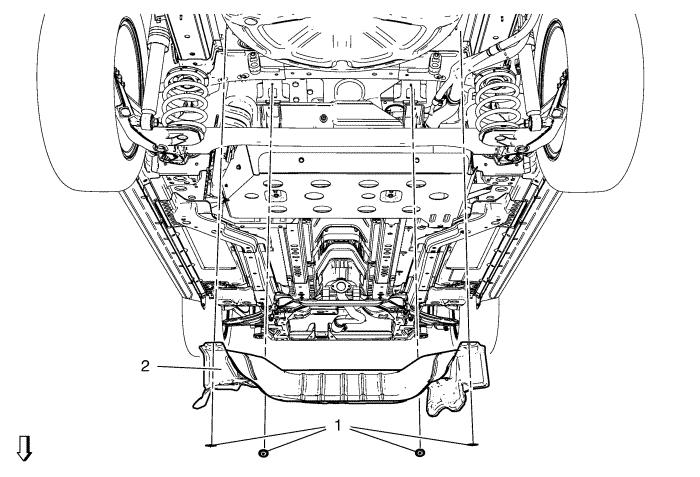

Exhaust Rear Muffler Heat Shield Replacement Callout Component Name Warning:  Refer to Exhaust Service Warning . Warning:  Refer to Protective Goggles and Glove Warning . Preliminary Procedures 1. Raise and support the vehicle. Refer to . Lifting and Jacking the Vehicle 2. Separate the exhaust rear muffler from the underbody and support the exhaust system. 1 Heat Shield Retainer (Qty: 4) 2 Exhaust Rear Muffler Heat Shield
