Exhaust Pipe Front Hanger Bracket Replacement (Engine Exhaust)

Make

Vauxhall

Model

Astra J

Section

Engine Exhaust › Repair Instructions › Exhaust Pipe Front Hanger Bracket Replacement

EngineExhaust Pipe Front Hanger Bracket Replacement

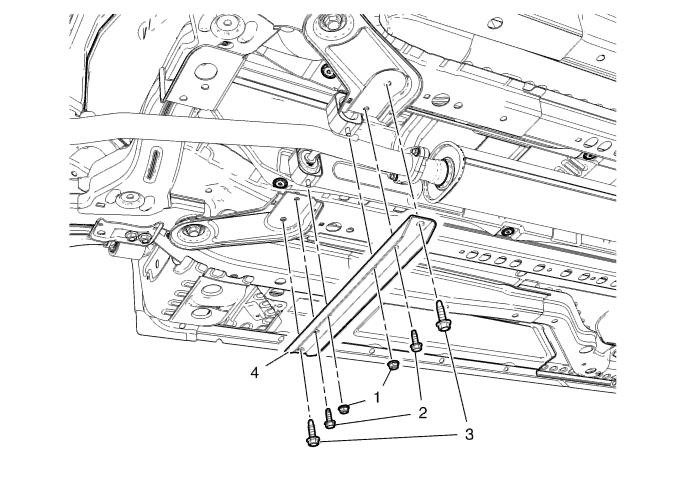

Exhaust Pipe Front Hanger Bracket Replacement Callout Component Name Warning:  Refer to Exhaust Service Warning . Warning:  Refer to Protective Goggles and Glove Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . 1 Exhaust Pipe Front Hanger Insulator Nuts (Qty: 2) Caution: Refer to Fastener Caution . Tighten 17 N·m (13 lb ft) 2 Exhaust Pipe Front Hanger Bracket Bolts (Qty: 2) Caution: Refer to Torque-to-Yield Fastener Caution . Procedure Install NEW bolts, do NOT reuse old bolts. Tighten 22 N·m (16 lb ft) + 30° - 45° 3 Drivetrain and Front Suspension Frame Support Bolts (Qty: 2) Procedure Install NEW bolts, do NOT reuse old bolts. Tighten 60 N·m (44 lb ft) + 30° - 45° 4 Exhaust Pipe Front Hanger Bracket
