Fuel Tank Heat Shield Replacement

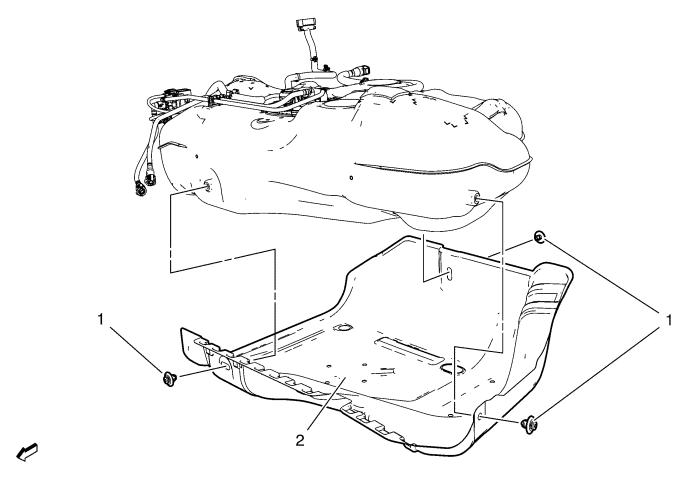

2027953


Callout

Component Name

Warning:  Always wear safety goggles when working with fuel in order to protect the eyes from fuel splash.

Warning:  Fuel Vapours can collect while servicing fuel system parts in enclosed areas such as a boot. To reduce the risk of fire and increased exposure to vapors:

   •  Use forced air ventilation such as a fan set outside of the trunk.
   •  Plug or cap any fuel system openings in order to reduce fuel vapor formation.
   •  Clean up any spilled fuel immediately.
   •  Avoid sparks and any source of ignition.
   •  Use signs to alert others in the work area that fuel system work is in process.


Preliminary Procedures

Remove the fuel tank.

    •  For 1.4L LDD/ LUJ. Refer to Fuel Tank Replacement .
    •  For 1.6L LDE/ LLU/ LXV. Refer to Fuel Tank Replacement .
    •  For 1.8L 2HO. Refer to Fuel Tank Replacement .
    •  For 1.3L Diesel LSF. Refer to Fuel Tank Replacement .
    •  For 1.7L Diesel LPL/ LPV. Refer to Fuel Tank Replacement .
    •  For 2.0L Diesel LBS. Refer to Fuel Tank Replacement .

1

Fuel Tank Heat Shield Retaining Clamp (Qty: 3)

2

Fuel Tank Heat Shield
